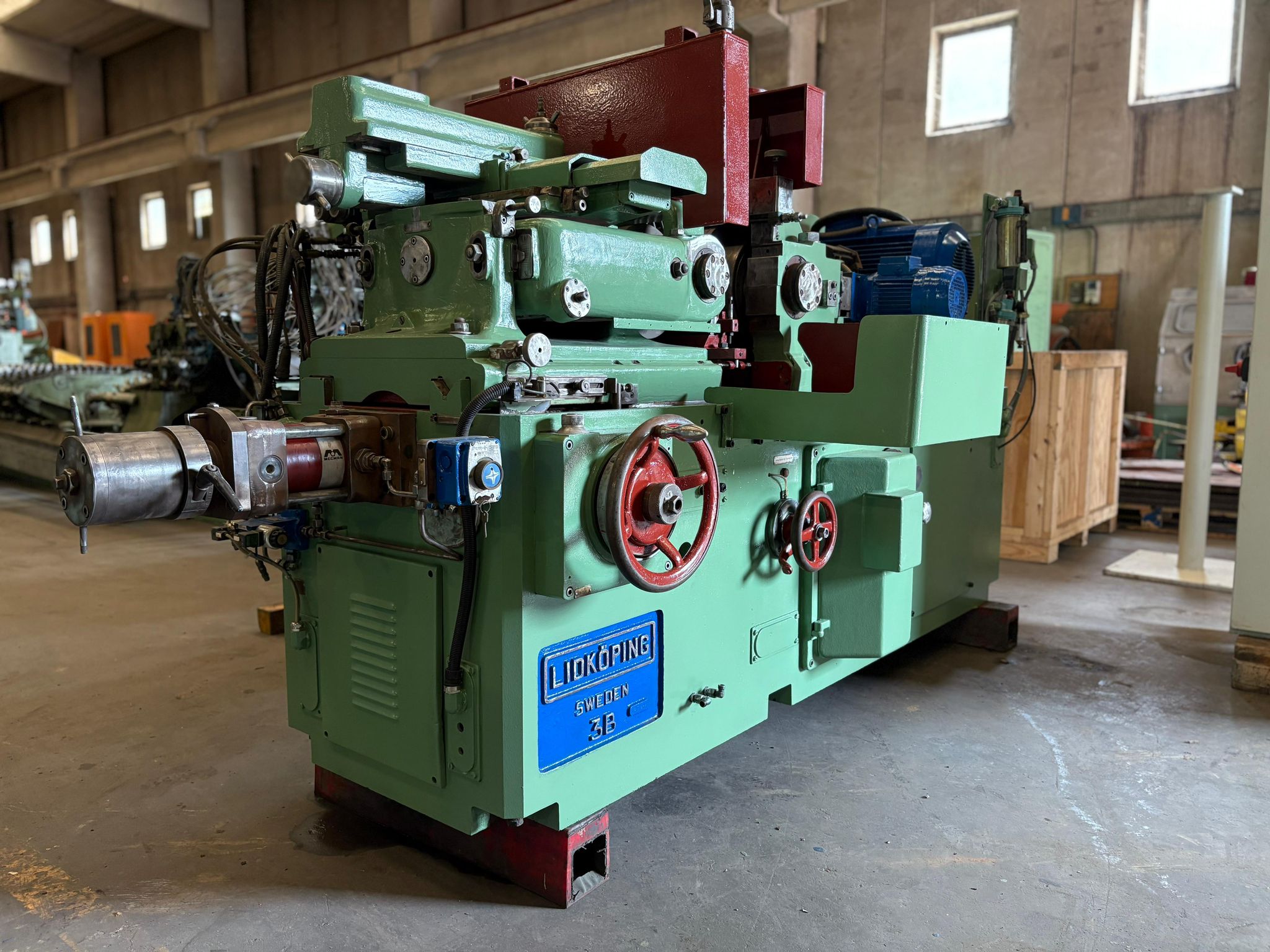

Centerless Grinder

Buy Used Centerless Grinder from Lidkoping, Model - CL3B

SKU : 2506129

I am a dealer

Subscribe for similar machines

New Electrics With PLC Siemens S7
Max. opening between new grinding and regulating wheels 175 mm
Total diameter range with new wheels 1–150 mm
Recommended diameter range for bar grinding 5–100 mm
Recommended diameter range for bearing ring grinding 15–65 mm
Max. workpiece length for infeed grinding 75 mm
Max. workpiece length for infeed grinding with recessed wheels 50 mm
Max. width with recessed wheels 75 mm
Grinding Wheel
Outer diameter, new wheel 406 mm
Wheel can be used until diameter is reduced to 305 mm
Standard width 100 mm
Max. width with recessed wheels 75 mm
Bore 203 mm
Peripheral speed (standard nom. 30 m/s = 6000 ft/min) 35 m/s
Peripheral speed (extra nom. 45 m/s = 9000 ft/min) 50 m/s
Peripheral speed (extra nom. 60 m/s = 12000 ft/min) 80 m/s
Regulating Wheel
Outer diameter, new wheel 280 mm
Wheel can be used until diameter is reduced to 177.8 mm
Standard width 100 mm
Maximum width with recessed wheels 75 mm
Bore 76.2 mm
Speed – standard worm gear (infinitely variable) 0.5–200 rpm
Speed – hypoid gear, attachment 110 (infinitely variable) 0.4–300 rpm
Power Requirements
Main motor, max. 22 kW (30 HP)
Total power requirements 29 kW (39 HP)
Dimensions and Weights
Height floor to center of spindles 1060 mm
Floor space required (incl. electric cabinet, coolant install., float of standard cyclone type and hydraulic system) 4100×1700 mm
Net weight (without electric cabinet, coolant installation or tank, hydraulic system) 3600 kg
Gross weight (incl. crating) 4600 kg
Shipping volume 13 m³
