Grinder - Cylindrical

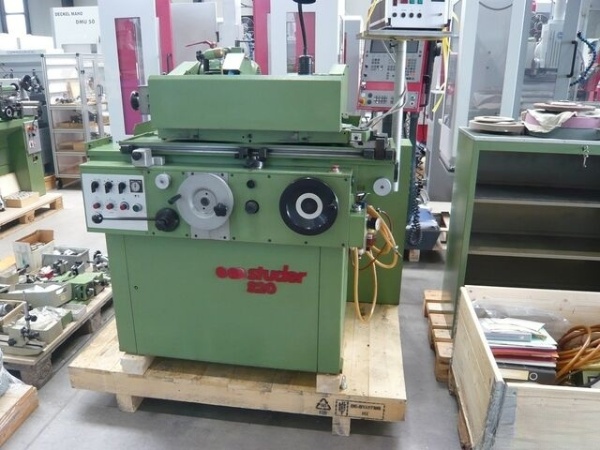

Buy Used Grinder - Cylindrical from Studer of year - 1982, Model - S20

SKU : 2505480

I am a dealer

Subscribe for similar machines

Internal and External Universal Cylindrical Grinding
External Grinding
Max. Grinding Diameter (with/without steady rest) 80 / 155 mm
Max. Grinding Length 400 mm
Centre Height 80 mm
Morse Taper Center MT2
Internal Grinding
Grindable Bore Diameter (min/max) 2 – 100 mm
Max. Grinding Depth 130 mm
Spindle Mount Bore Size Ø80 mm × 155 mm length
Axis and Motion
Longitudinal Slide Stroke 1 – 420 mm
Table Speed (Infinitely Adjustable) 0.1 – 3.5 m/min
Max. Table Rotation Angle ±30°
Spindle Speed (Variable) 60 – 1200 rpm
Swivel Angle (Right) 15° / 30°
Power and Dimensions
Drive Power 2.2 kW
Machine Weight ~900 kg
Accessories Included
Tool cabinet, grinding wheels, balancing device, fine balancing device, magnetic plate, three-jaw chuck, steady rests, radius grinding wheel dressers, CBN and other grinding wheels, grinding flanges, dressers, chuck for grinding headstock, collets, internal grinding accessories, spare parts, coolant tank, documentation, and more.
Note Comes with multiple pallets of accessories – comprehensive equipment for both internal and external precision grinding.
