Tool Grinder

Buy Used Tool Grinder from Schneeberger of year - 2007, Model - Corvus GDS 650

SKU : 250430

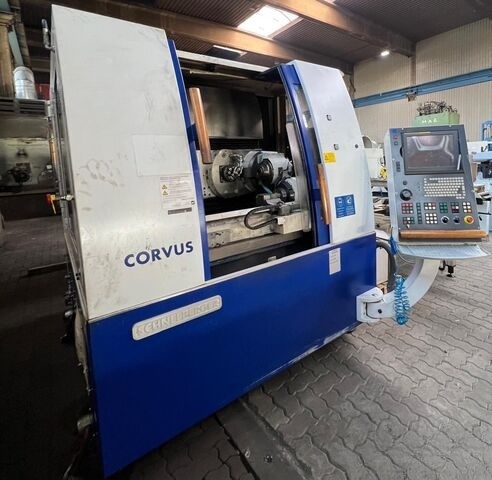

Used Schneeberger Tool Grinder 2007 Corvus GDS 650

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Fanuc 160i-PB
  • Table Length 650 mm
  • Table Width 300

Machine Description

  • 7-Axis Tool Grinding Machine
  • Software Quinto 4.3
  • Software Active Options 1, 2, 19, 21, 22, 30, 31, 32, 35
  • Automation Fanuc Loading Robot
  • Coolant System Yes
  • X-Axis 650 mm
  • Y-Axis 300 mm
  • Z-Axis 300 mm
  • C-Axis Swivel Angle +150° / -60°
  • C' Axis Swivel Angle ±180°
  • Grinding Spindle
  • Wheel Dimensions Up to 250 mm
  • Speed 0 - 10,000 rpm
  • Max. Spindle Power 26 kW
  • Mounting HSK 80
  • Max. Number of Disks 6
  • Workpiece Headstock
  • Max. Speed 180°/s
  • Drive Power 1.6 kW
  • Mounting ISO 50
  • Precision (Resolution)
  • Linear Axes 0.001 mm
  • C-Axis 0.001°
  • Additional Features
  • U-Axis Fitted with steady rest, clamping cylinder, and counterpoint
  • Disk Holders 13
  • Pallet Loaders 6 (Diameter 3 to 32 mm)
  • Plastic Bushes 64
  • Dimensions & Weight
  • Length 3100 mm
  • Width 1915 mm
  • Height 2190 mm
  • Weight 8500 kg
