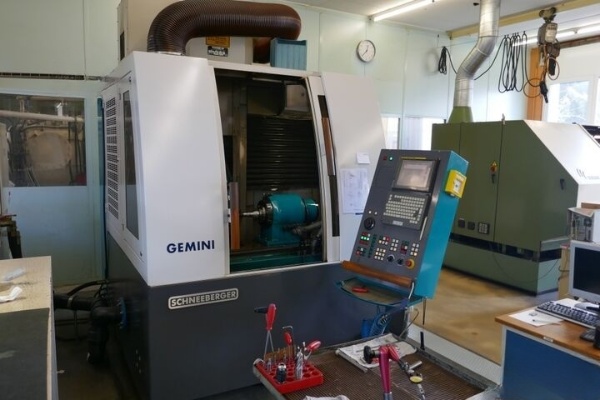

5-axis CNC-controlled tool grinding machine
Total Height 2,200 mm
Total Length 2,980 mm
Total Width 1,470 mm
Overall Weight Approx. 4,000 kg
X-axis Travel Distance 360 mm
Y-axis Travel Distance 270 mm
Z-axis Travel Distance 270 mm
C-axis Swivel Range 370°
Center Height 210 mm
Grinding Spindle Drive Power 9 kW (12.24 HP)
Spindle Speed (Min.) 1,000 rpm
Spindle Speed (Max.) 9,000 rpm
Grinding Wheel Diameter (Max.) 250 mm
Input Power 400V / 50Hz / 21 kVA
Type of Input Current Three-phase
Software Packages
Quinto software for cylindrical milling cutters (sharp edges, corner radius, full radius)
Quinto software for conical-spiral tools (sharp edges, corner radius, full radius)
Quinto software for drills and step drills
Quinto software for Hertel drills
Quinto software for wood drills
Quinto software for profile tools
Interactive slot simulation software
eGrind software
External programming PC
Additional Features & Accessories
Cylindrical grinding axis (600 rpm)
Glass scales on linear axes
Internal loader
Hydraulic steady rest
Manual tailstock
Measuring probe
Disk probe
Optical Profile Control Camera (OPC)
Electrostatic vapor separators
Automatic central lubrication system
Automatic fire extinguishing system
Hydraulic workpiece clamping
Turbo Separator coolant cleaning centrifuge
Machine lighting system
Spindle cooler & heat exchangers
Automatic chucks with drawbar (Schaublin)
Schunk chucks (Erowa system)
Tightening jaws
Collets Ø 3, 5, 11, 13, 15, 18, 22, 25, 32 mm
Loading pallets for Ø 6, 8, 10, 12, 25 mm
