Metal Cutting-B
Tool Grinder
Amada
Togu-EU
Tool Grinder

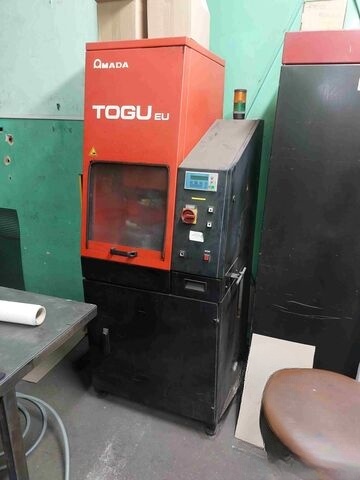

Buy Used Tool Grinder from Amada of year - 2006, Model - Togu-EU
SKU : 2503488
Price :
€15,500
CONTACT SELLER
Hello, Your machine Amada - Tool Grinder listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Tool Grinder
Category
Metal Cutting-B
Brand
Amada
Year
2006
Condition
Used
Location
Poland
Machine
Specifications
Center Distance
200 mm
Table Length
750 mm
Table Width
800
Machine
Description
Control System
SPS (Stored Program Control)
Maximum grinding depth
0.99 mm
Minimum tool diameter
2 mm
Maximum tool diameter
160 mm (Type E - 4 ½” die)
Standard grinding wheel
150 mm diameter / made of CBN
Spindle motor
1.5 kW / 50 Hz
Spindle speed
3,000 rpm
Vertical travel
200 mm
Vertical feed motor
200W, step motor, step interval 1/2000
Feed rate
600 mm/min
Positioning speed
Workpiece-dependent
Table motor
120W, 4P
Table rotation speed
60 rpm
Coolant tank capacity
20 liters
Coolant pump motor
0.26 kW
Coolant pump flow rate
13 liters/min at 50 Hz
Power supply
3/PE AC 400V, 50 Hz
Power consumption
Approx. 4.8 kVA
Pre-fuse
Max. 10A
Machine dimensions (L × W × H)
750 × 800 × 1,920 mm
Machine weight
470 kg
Transport weight (with packaging)
650 kg
