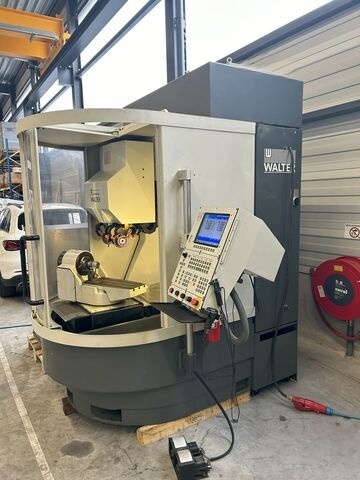

Tool Grinder

Buy Used Tool Grinder from Walter of year - 1996, Model - AG Helitronic Power

SKU : 250614

View more images

I am a dealer

Subscribe for similar machines

CNC Universal 5-Axis Tool and Cutter Grinder
X-Axis Travel 400 mm
Y-Axis Travel 250 mm
Z-Axis Travel 580 mm
C-Axis (Table Rotation) ±200°
Grinding Spindle
Spindle Speed 3,000 / 6,000 RPM
Maximum Grinding Wheel Diameter Ø 200 mm
Grinding Motor
Spindle Speed 3,000 / 6,000 RPM
Power Requirement 3.4 kW / 4.2 kW
Total Power Consumption 15 kVA
Integrated Coolant System
Operating Pressure 3 Bar
Coolant Volume Approx. 180 liters
Pump Capacity 60 l/min
Machine Dimensions & Weight
Total Width 1,420 mm
Total Depth 2,010 mm
Total Height 2,150 mm
Overall Weight 3,100 kg
Grinding Head
Type 1 grinding head with 2 short cones and bottom support for mounting of grinding wheel adapter
Grinding Wheel Diameter Ø 70 mm
Maximum Grinding Wheel Diameter Ø 200 mm
Coolant Supply 3 coolant valves per end of grinding spindle for targeted supply during grinding
