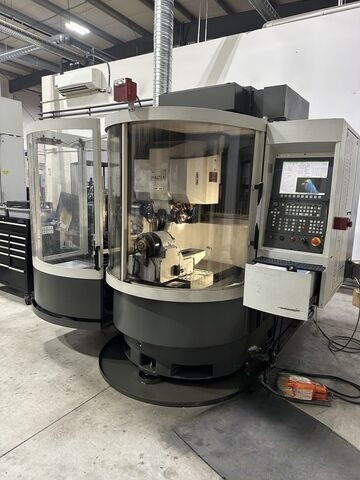

5-Axis CNC Tool & Cutter Grinder – Walter Helitronic Mini Power
Universal CNC Tool & Cutter Grinder
Universal CNC-controlled tool and cutter grinder suitable for manufacturing and regrinding of metal and woodworking tools. Equipped with a 1-micron filtration system for exceptionally clean operation
X-Axis (Longitudinal Traverse) 350 mm
Y-Axis (Vertical Traverse) 200 mm
Z-Axis (Cross Traverse) 470 mm
C-Axis (Rotary Table Swivel Range) ±200°
Work Head ISO 50
Center Height (with/without worktable) 145 / 190 mm
Maximum Workpiece Diameter 100 mm
Maximum Workpiece Length 270 mm
Maximum Grinding Wheel Diameter 150 mm
Peak Power 11.5 kW
Grinding Spindle Motor 9 kW
Spindle Speed Range 0 – 9500 rpm
Connected Load Approx. 25 kW (460V, 3-Phase, 60Hz)
Machine Dimensions (W x D x H) 2600 x 2550 x 1970 mm
Machine Weight Approx. 3950 kg
Machine Color Grey RAL 7035 / Grey RAL 7043
Accessories & Upgrades
HMC 500 CNC Control (Windows XP Upgrade)
Booster Box Upgrade and Spare Booster Box (valued at $10,000 each, supports up to 3 Walter machines)
Stepless Speed Control
Probe System
Pneumatic Workpiece Clamping
Fire Extinguishing System
Mist Extractor
Oil Collecting Pan
2 Grinding Wheel Flanges
Complete Set of User Manuals
Software Included
Tool Studio v2.1 Standard
Steptools
WWM Software
Condition & Upgrades (2021)
New Y-Axis Motor and Ball Screw
New Spindle
New Electrical Cabinet Air Conditioner
New Encoder and Motor Cables for A, C, X, Y, and Z Axes
Machine is currently in production delivering high-precision results
Viewing under power is available
