5 Axis VMC

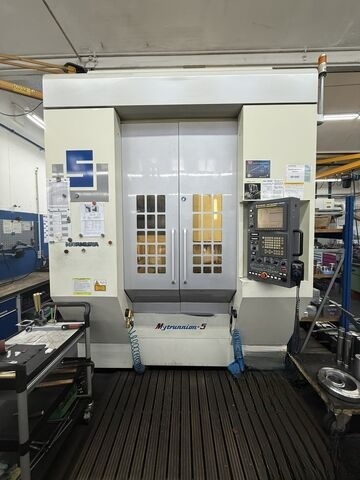

Buy Used 5 Axis VMC from Kitamura, Model - Mytrunnion-5

SKU : 2503431

I am a dealer

Subscribe for similar machines

5-Axis CNC Machining Center
Rotary Axes
A-Axis (Rotation) ±120°
C-Axis (Rotation) 360°
Power 15 hp (11 kW)
Speed Up to 12,000 RPM (optional: 18,000 RPM or 24,000 RPM)
Spindle Connection HSK-A63 or BT40 (depending on configuration)
Cooling Integrated spindle cooling, optional additional coolant supply for tool and workpiece
Capacity 30 tool positions (expandable to 60)
Tool Change Time 2.0 seconds (W-to-W)
Rapid Traverse Speed (X/Y/Z) 30 m/min
A/C Axis Speed 15,000 RPM
Positioning Accuracy
X/Y/Z Axis ±0.003 mm
A/C Axis ±0.001°
Repeatability
X/Y/Z Axis ±0.001 mm
A/C Axis ±0.0005°
Maximum Table Load 200 kg
Maximum Workpiece Size Ø500 mm x 500 mm (depending on model)
Length Approx. 3,000 mm
Width Approx. 2,100 mm
Height Approx. 2,500 mm
Weight Approx. 7,500 kg (depending on configuration)
Special Features
Trunnion Table Enables 5-axis simultaneous machining for complex workpieces, enhancing flexibility and precision
High Precision Suitable for applications demanding extreme accuracy
Robust & Durable Built for long service life with stable construction
Versatility Capable of machining aluminum, steel, titanium, and more
