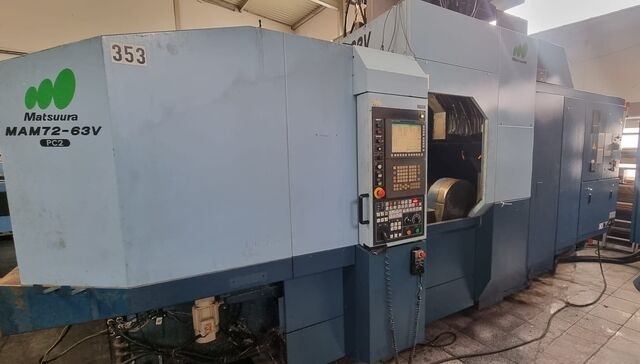

Buy Used 5 Axis VMC from Matsuura of year - 2005, Model - MAM72-63V

SKU : 2406154

I am a dealer

Subscribe for similar machines

Travel Distances
X-Axis 760 mm
Y-Axis 845 mm
Z-Axis 660 mm
Rotary Axes
A-Axis -120° to +30°
C-Axis 360°
Table (Pallet) Size 500 x 500 mm
Control System
Control FANUC 5-axis CNC control 30i
Spindle Specifications
Main Spindle Speed Range 40 - 12,000 min⁻¹
Spindle Holder SK 40 DIN 69871 Big+
Spindle Bearing Inner Diameter 70 mm
Spindle Motor Power 18.5/15 kW
Maximum Torque 108.5 Nm up to 1,320 min⁻¹
Measurement Systems
Direct Measuring System Rotary encoder for A and C axes
Direct Measuring System (Heidenhain) For X, Y, and Z axes
Tooling and Pallet Changer
Standard Tool Magazine Capacity 80 tools (chain magazine)
Pallet Changer 2 pallets
Cooling and Chip Management
Coolant System KNOLL high-performance
Coolant Supply Through Spindle Coolant pump KTS25-50T, 17 l/min at 70 bar, 5.5 kW, 3-stage switchable coolant pressure
External Cooling Coolant pump, 100 l/min at 1.4 bar
Coolant Shower Coolant pump, 200 l/min at 2.3 bar
Hydrostatic Filter HL-450, filter capacity approx. 450 min
Overall System Dimensions (L x W x H) Approx. 2.7 x 1.5 x 2.3 meters
Tank Capacity Approx. 1,500 liters
