5 Axis VMC

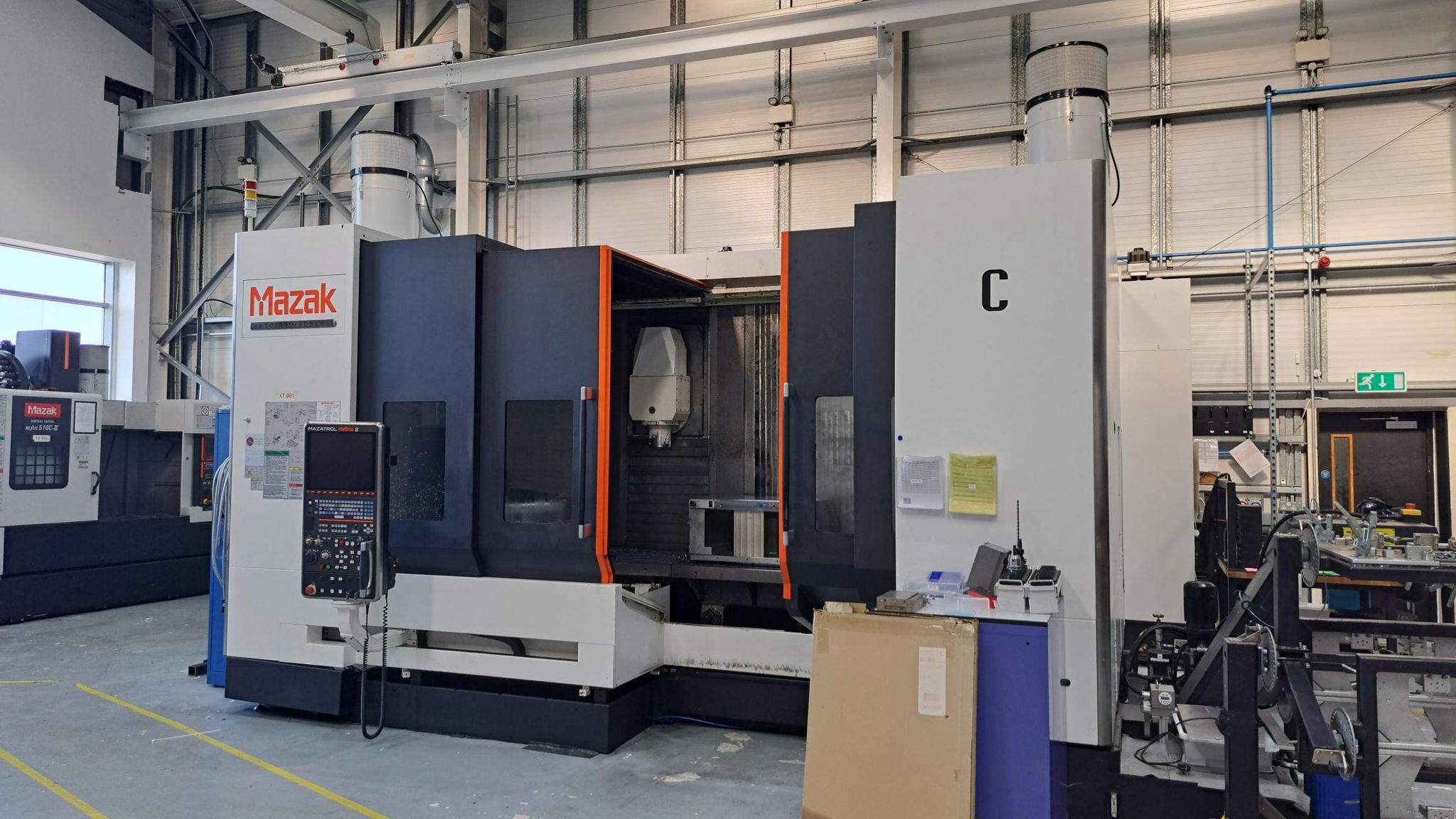

Buy Used 5 Axis VMC from Mazak of year - 2016, Model - VTC-800-30SLR

SKU : 250470

I am a dealer

Subscribe for similar machines

Spindle Nose to Table Surface 150 mm – 870 mm
Table Size 3,500 mm x 820 mm
Maximum Table Load 3,000 kg
Spindle Taper HSK-A63
Spindle Speed 18,000 rpm (standard)
Spindle Motor Output 35 kW (30 min)
Rapid Traverse (X/Y/Z) 42/42/42 m/min
Tool Magazine Capacity 30 tools (option up to 120)
Tool Change Time (Chip to Chip) ~6.5 sec
Tilting Rotary Table (5th Axis) Integrated, A-axis (tilting) ±120°, C-axis (rotation) 360°
Positioning Accuracy ±0.005 mm
Repeatability ±0.003 mm
Machine Weight ~20,000 kg
Power Requirement 70 kVA
