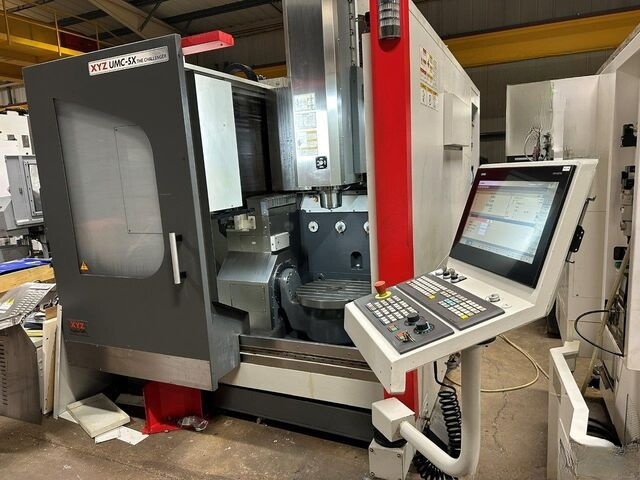

Buy Used 5 Axis VMC from XYZ of year - 2018, Model - XYZ UMC 5X5 Axis

SKU : 2404400

I am a dealer

Subscribe for similar machines

Trunnion Table Size 600mm diameter
X Axis Traverse 600mm
Y Axis Traverse 600mm
Z Axis Traverse 500mm
A Axis Tilt +120 deg/-120deg
C Axis Rotation 360 degree
Maximum Table Load 360 degree
Spindle BT 40
Maximum Spindle Speed 15,000rpm
Spindle Motor 22.4kW
Maximum Spindle Torque 239Nm at 1100rpm
Rapid Feed Rate X,Y,Z Axis 36m/min
Rapid Feed Rate C Axis
Rapid Feed Rate A Axis 540 degrees a second (90 rpm), 99 degrees a second (16.6rpm)
Toolchanger Capacity 32 tools
Approx. Weight 9500kg
Machine Equipped With
Siemens 840DSL CNC Control System with Shop Mill
Through Spindle Coolant, 20 bar
Swarf Conveyor
Laser Tool Setting
Traori (keeps the tool in an optimized cutting position relative to the workpiece during 5-axis simultaneous machining)
Enclosed Guarding
