Home
Metal Cutting
CNC Lathe
Boehringer
DUS 560
This machine not available
CNC Lathe

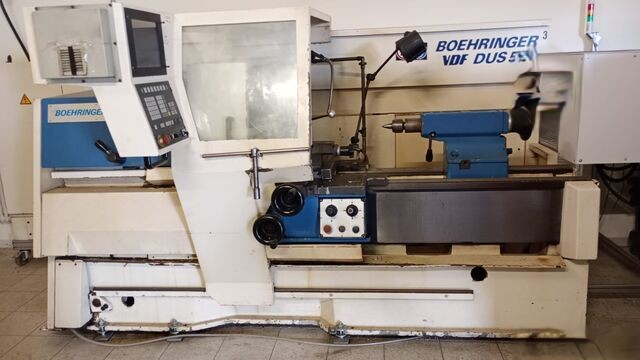

Buy Used CNC Lathe from Boehringer of year - 1998, Model - DUS 560
SKU : 2312295
CONTACT SELLER
Hello, Your machine Boehringer - CNC Lathe listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
CNC Lathe
Category
Metal Cutting
Brand
Boehringer
Year
1998
Condition
Used
Location
Germany
Machine
Specifications
Diameter
570 mm
Length
1000 mm
Spindle Bore
62 mm
Machine
Description
Technical Data
Turning Length
1000 mm
Rotation Diameter Over Bed/Plane Slide
570 mm
Displacement of the Facing Slide
345 mm
Turning Tool Cross-Section (DIN 770 hxw)
32x25mm
Spindle Head (DIN 550027)
8
Spindle Diameter in Front Bearing
100 mm
Spindle Bore
62 mm
Inner Taper of the Main Spindle
70
Infinitely Variable Three-Phase Motor
Drive Power
19 kW
Max Torque
1,800 Nm
Total Speed Range
3-2500 1/min
Gear Stages
2
Quill Diameter
80 mm
Quill Stroke
190 mm
Inner Taper of the Quill
MK 5
Space Requirement
4175 * 1800 * 1790 mm
Weight
4,000 kg
