Home
Metal Cutting
CNC Lathe
Ace
Super Jobber 500
CNC Lathe

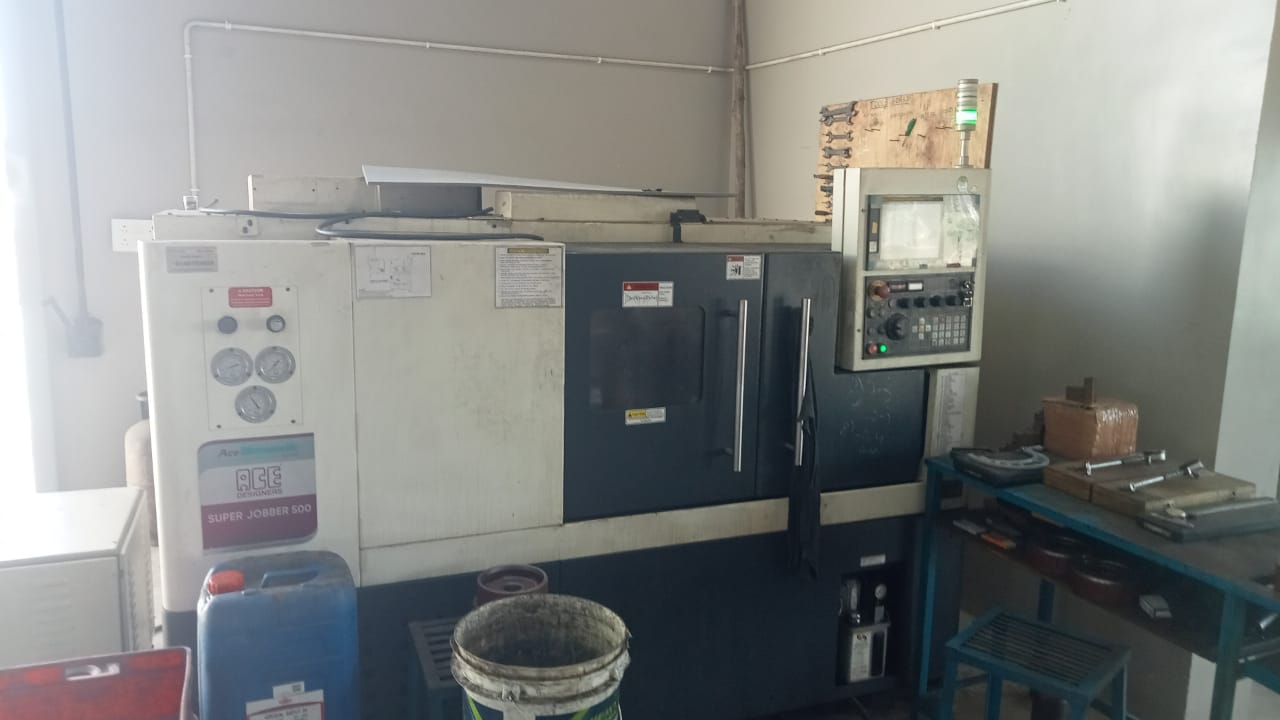

Buy Used CNC Lathe from Ace of year - 2024, Model - Super Jobber 500
SKU : 250463
Price :
₹1,650,000
CONTACT SELLER
Hello, Your machine Ace - CNC Lathe listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
CNC Lathe
Category
Metal Cutting
Brand
Ace
Year
2024
Condition
Used
Location
India
, Gujarat
, Rajkot
Machine
Specifications
Controller
Fanuc
Diameter
300 mm
Length
500 mm
Spindle Bore
66 mm
Machine
Description
Horizontal CNC Turning Center
Swing Over Bed
500 mm
Standard Chuck Size
200 mm (8 inches)
Bar Capacity
52 mm
Spindle Speed Range
50 – 4000 RPM
Spindle Motor Power
11/15 kW (Continuous/30 min)
Turret Type
Servo/Bi-directional
No. of Tool Stations
8 or 12 (optional)
Tooling System
VDI or Bolt-on
X-Axis Travel
220 mm
Z-Axis Travel
550 mm
Rapid Traverse (X/Z)
20/24 m/min
Tailstock Type
Programmable / Hydraulic (optional)
Tailstock Quill Travel
100 mm
Tailstock Quill Diameter
75 mm
Control System
Fanuc Oi-TF or Siemens (optional)
Machine Weight
~4000 kg
Floor Space (L x W)
2800 mm x 1800 mm
