CNC Lathe

Buy Used CNC Lathe from Baron Max of year - 2007, Model - KL-2680

SKU : 2502590

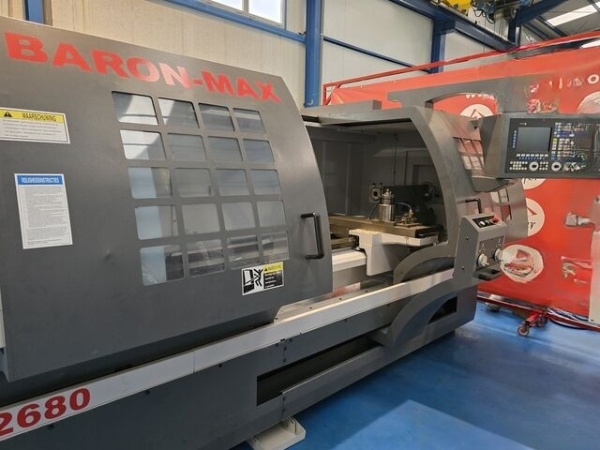

Used Baron Max CNC Lathe 2007 KL-2680

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Fagor 8055
  • Diameter 670 mm
  • Length 2100 mm
  • Spindle Bore 305 mm

Machine Description

  • Swing over bed 670 mm
  • Center height to bed 335 mm
  • Center height to top cross slide 205 mm
  • Swing over cross slide 400 mm
  • Distance between centers 2100 mm
  • Bed width 450 mm
  • Spindle nose A1-11
  • Spindle bore 305 mm
  • Bar capacity Ø 105 mm
  • Spindle speed range (3-range gears with auto shifting)
  • High (H) 1500–331 rpm
  • Medium (M) 330–93 rpm
  • Low (L) 92–24 rpm
  • Spindle taper MT#6
  • Longitudinal travel (Z-axis) 2000 mm
  • Cross-slide travel (X-axis) 450 mm
  • Tool holder size
  • Boring tool Ø 40 mm
  • O.D. & facing tool 25 mm
  • Ball screw (Dia x Pitch)
  • X-Axis Ø 25 mm × P 5 mm
  • Z-Axis Ø 50 mm × P 10 mm
  • Quill diameter Ø 105 mm
  • Quill travel 220 mm
  • Quill taper MT#5
  • Spindle motor 20 HP
  • Z-axis drive motor 12 Nm (FKM 44.3)
  • X-axis drive motor 6.3 Nm (FKM 42.3)
  • Coolant pump motor 1/4 HP
  • X-axis rapid travel 6 m/min
  • Z-axis rapid travel 8 m/min
  • Power requirement 20 KVA
  • Floor space (L × W × H) 4090 × 1950 × 1820 mm
  • Approximate machine weight 4700 kg
  • Coolant system
  • Manual 4-way tool post
  • 4-jaw self-centering scrolling chuck Ø 12"
  • Steady rest
