This machine not available

CNC Lathe

Buy Used CNC Lathe from Citizen of year - 2003, Model - M32

SKU : 240615

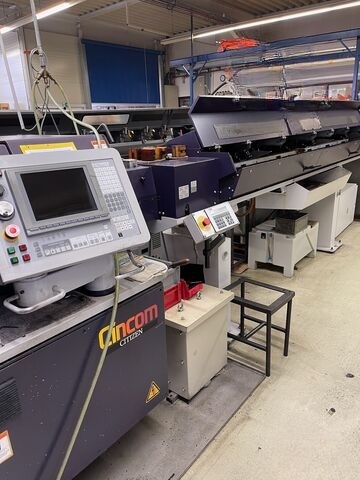

Used Citizen CNC Lathe 2003 M32

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Mitsubishi
  • Diameter 32 mm
  • Length 320 mm
  • Spindle Bore 32 mm

Machine Description

  • Control Cincom Mitsubishi
  • Operating Hours 62,087 hours
  • Control Channels 3-channel control
  • Main Spindle
  • Max. Bar Diameter 32 mm
  • Max. Machinable Length 320 mm
  • Spindle Speed 8000 rpm
  • Spindle Drive Power 3.7 kW
  • Counter Spindle
  • Max. Bar Diameter 32 mm
  • Spindle Speed 7000 rpm
  • Revolver Head
  • Number of Turrets 1
  • Number of Positions 20
  • Driven Tools 20
  • Spindle Speed 5000 rpm
  • Number of Positions 9
  • Number of Motorized Positions 4
  • Driven Tools Speed 5000 rpm
  • Separate Rear Station
  • Number of Positions 3
  • Dimensions and Weight
  • Dimensions (LxWxH) 3050 x 1750 x 1800 mm
  • Machine Weight 3200 kg
  • Additional Features
  • Hinged Belt Chip Conveyor Knoll
  • High-Pressure System Cool Blaster with 4 valve inlets
  • Tool Holder Included
  • Loading Magazine FMB Turbo 3-36
