Metal Cutting
CNC Lathe
Daewoo

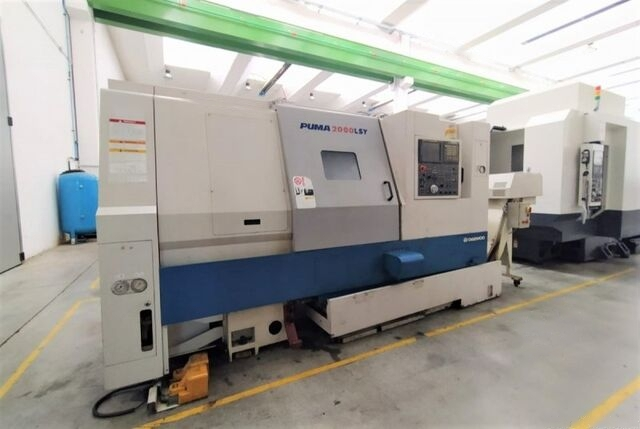

PUMA 2000 LSY
This machine not available
CNC Lathe
Buy Used CNC Lathe from Daewoo of year - 2002, Model - PUMA 2000 LSY
SKU : 23081089
CONTACT SELLER
Hello, Your machine Daewoo - CNC Lathe listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
CNC Lathe
Category
Metal Cutting
Brand
Daewoo
Year
2002
Condition
Used
Location
Italy
Machine
Specifications
Diameter
330 mm
Length
760 mm
Machine
Description
- USED - 5-AXIS CNC LATHE
MAX TURNING LENGTH
760 mm
MAX TURNING DIAMETER
330 mm
BAR CAPACITY
65 mm
SPINDLE
ASA A2-6 ; 11-15 kW; 4500 rpm
COUNTER SPINDLE
5,5-7,5 kW; 6000 rpm
X-AXIS TRAVEL
250 mm
Y-AXIS TRAVEL
± 50 mm
Z-AXIS TRAVEL
830 mm
B-AXIS TRAVEL
830 mm
RAPID FEEDS X-Y-Z
24 - 7,5 - 20 m/min
DRIVEN TURRET HEAD
6000 rpm; 12 POS
CONTROL UNIT
FANUC 18i-T
WEIGHT
5350 Kg
OVERALL DIMENSIONS
3500 x 1700 x 2060 mm
ACCESSORIES
SWARF CONVEYOR ;
TOOL SETTER
NOTE
PART CATCHER WITH BELT; AUTOMATIC DOOR OPENING SYSTEM
