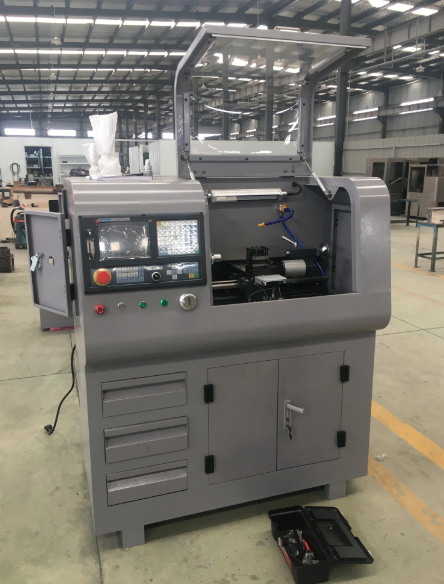

CNC Lathe

Buy New CNC Lathe from DP Group, Model - CNC210

SKU : 2505397

I am a dealer

Subscribe for similar machines

Max. Length of Workpiece 400 mm
Distance Between Centers 400 mm
Swing Over Bed 210 mm
Swing Over Carriage 105 mm
Width of Bed 275 mm
Number of Spindles 4
Tool Post Stations 4-Station Electric Toolpost
Spindle Motor Power 1.1 kW
Pump Power 40 kW
Spindle Bore 26 mm
Range of Spindle Speed 100–3000 rpm
Range of Metric Threads 0.25–4 mm
Number of Axes 2
Travel (X Axis) 100 mm
Travel (Z Axis) 275 mm
Max. Travel of X Axis 100 mm
Max. Travel of Z Axis 275 mm
X Moving Speed 2000 mm/min
Z Moving Speed 2000 mm/min
Positioning Accuracy 0.01 mm
Repeatability (X/Y/Z) 0.012 mm
Max Tailstock Travel 55 mm
Tailstock Taper MT2
Tailstock Diameter 22 mm
Quill Diameter 50 mm
Quill Travel 120 mm
Voltage As customer required
Machining Capacity Heavy Duty
Key Selling Points Easy to Operate
Warranty 1 Year
Logo Printing OEM Service Available
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Weight (Net/Gross) 370 kg
Packing Size (L×W×H) 1105×925×1145 mm
Standard Accessories Manual 3-jaw Chuck, Alarm Lamp, Working Lamp, Automatic Lubricating System, Coolant System, 4-Station Electric Toolpost
