CNC Lathe

Buy Used CNC Lathe from Gildemeister of year - 1989, Model - NEF 1020

SKU : 2405544

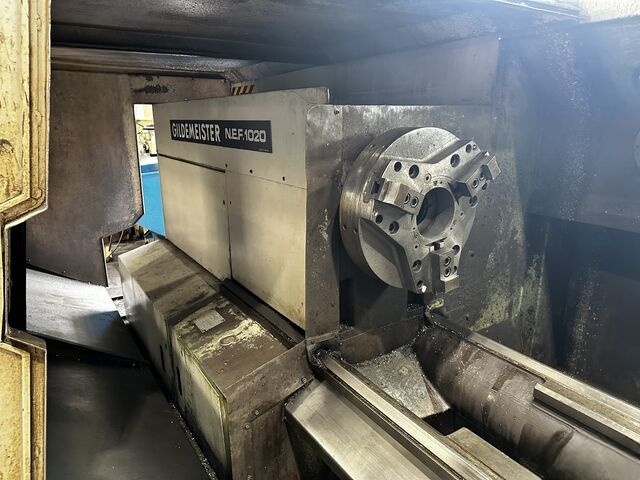

Used Gildemeister CNC Lathe 1989 NEF 1020

CONTACT SELLER

Machine overview

Machine Specifications

  • Diameter 600 mm
  • Length 4000 mm
  • Spindle Bore 128 mm

Machine Description

  • Operating Hours Approximately 95,000 hours
  • Rotation Diameter Over Bed/Plane Slide 1025 mm / 600 mm
  • Center Height 500 mm
  • Bed Width 600 mm
  • Carriage Dimensions Length - 1020 mm, Width - 340 mm
  • Turning Length 4000 mm
  • Machine Dimensions
  • Length 8050 mm
  • Width 2400 mm
  • Height 2180 mm
  • Weight 12,580 kg
  • Turning Capabilities
  • Turning Diameter Approximately 500 mm / 200 mm
  • Spindle Bore 128 mm
  • Chuck Diameter 400 mm / 500 mm / 630 mm
  • Spindle Diameter at Front Bearing 170 mm
  • Drive Power 30 kW / 50 kW
  • Max Torque on Main Spindle 4600 Nm / 6300 Nm
  • Tailstock Specifications
  • Tailstock Mount MK 6
  • Quill Diameter 125 mm
  • Quill Stroke 300 mm
  • Feed Rates
  • Feed Rate 0.25 mm/rev
  • Feed Force (100% ED)
  • X-axis 1900 daN
  • Z-axis 2000 daN
  • Feed Spindle Diameter/Pitch
  • X-axis 50 mm / 5 mm
  • Z-axis 65 mm / 10 mm
  • Rapid Traverse/Feed Speed
  • X-axis 8 m/min / 5 m/min
  • Z-axis 10 m/min / 5 m/min
