CNC Lathe

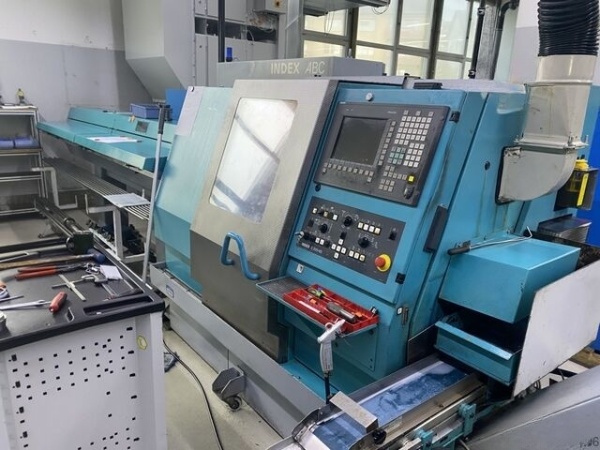

Buy Used CNC Lathe from Index of year - 2003, Model - ABC Speed Line

SKU : 25045

I am a dealer

Subscribe for similar machines

Compact Lathe for Short Turned Parts
Spindle Passage 60 mm
Turning Length 280 mm
Turning Speed Range (Drive Spindle) 6,300 U/min
Spindle Motor Power 3.3 kW
Turret 1 (Disc Turret)
Number of Tools 8
Tool System DIN 69880 / 25 mm
Synchronised Spindle Ø 42 collet chuck or 3-jaw gripper chuck (Clamping Diameter: 75 mm, Jaw Stroke: 0.6 mm)
V-Ledge System Compatibility
Back-Boring Device with 3 Stationary Back-Boring Tools
Additional Two Tools Can Be Equipped with Tool Feed Drive
Turret 2 (Dovetail Turret)
Number of Tools 6
Tool Holding 6 Symmetrical Dovetail Holders, Each with 2 Locating Holes for Cylindrical Shanks
Tool Compatibility
Stationary Tools with Z-Direction Movement
Driven Tools with Cylindrical Shank Ø25 (Two Positions Per Station)
Linear Axis Movement
Turret 1
X-Travel 90 mm
Z-Travel 280 mm
Turret 2
X-Travel 81 mm
Z-Travel 80 mm
Feed & Rapid Traverse
Feed Power 5,500 N
Rapid Traverse (X-Axis) 16 m/min
Rapid Traverse (Z-Axis) 24 m/min
Milling Spindle
Power Capacity 5000 kW
Bar Loader – LM 3200
Max Bar Length 3,200 mm
Min Bar Length (Ø ≥ 25 mm) 2,500 mm
Min Bar Length (Ø ≤ 25 mm) 1,500 mm
Bar Support 6 Bars Ø 52 mm
Loader Weight 700 kg
Machine Weight approx. 2.5 t
Machine Dimensions (L x W x H) 6.0 x 2.0 x 2.0 m
Material Bar Diameter
Round
Ø 8 - 25.4 mm / Ø 8 - 36 mm / Ø 8 - 52 mm
Square
SW Ø 6 - 14 mm / SW Ø 6 - 20 mm / SW Ø 6 - 20 mm
Hexagon
SW Ø 7 - 22 mm / SW Ø 7 - 30 mm / SW Ø 7 - 41 mm
Octagonal
SW Ø 7 - 22 mm / SW Ø 7 - 32 mm / SW Ø 7 - 40 mm
