Home
Metal Cutting
CNC Lathe
Lealde
TCN 3
This machine not available
CNC Lathe

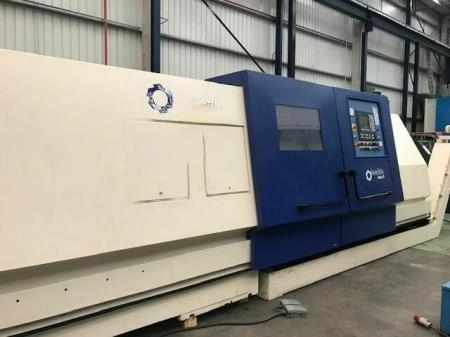

Buy Used CNC Lathe from Lealde, Model - TCN 3
SKU : 2307311
CONTACT SELLER
Hello, Your machine Lealde - CNC Lathe listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
CNC Lathe
Category
Metal Cutting
Brand
Lealde
Year
Condition
Used
Location
Spain
Machine
Specifications
Controller
Fagor
Diameter
600 mm
Length
2000 mm
Machine
Description
• FAGOR Control 8055i / AT
Diameter Pass over the bench 610mm
• diameter Pass over the 440mm car
• Transversal race 200mm
• Max distance from the mouthpiece of the spindle to the turret dish 960mm
• Distance between points 2000mm
• Number of speed ranges 11
• Spindle speeds (motor c.c) 13 A 2.643r.p.m
• ISO TO Nº 8
• diameter main axle 76mm
• Cone Morse nº 7
• Drive by DC electric motors 0 to 8,000 mm / min
• Reed of the cane (adjustable) 100mm
• Diameter of the 110mm rod
• Cone of the rotating point Morse nº 4
• 4kw engine power
CHECK MORE
