CNC Lathe

Buy Used CNC Lathe from Magdeburg of year - 2004, Model - M160 U-4

SKU : 2404748

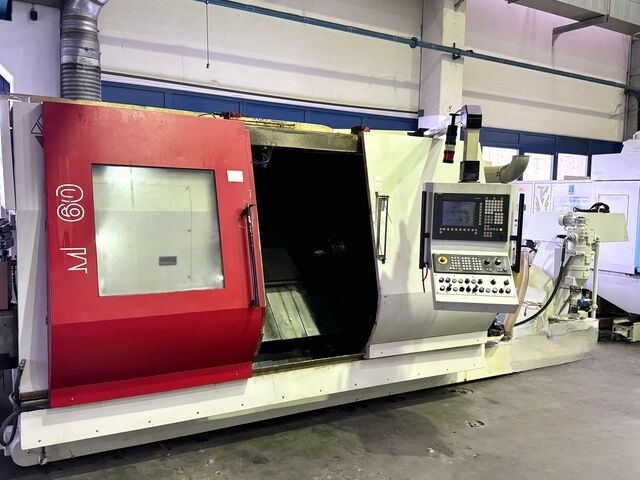

Used Magdeburg CNC Lathe 2004 M160 U-4

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • Diameter 280 mm
  • Length 800 mm
  • Spindle Bore 90 mm

Machine Description

  • Control System SIEMENS Sinumerik 840 D
  • Technical Specifications
  • Swing Diameter Over Bed Path Cover 280 mm
  • Swing Diameter Over Face Slide Guide 280 mm
  • Turning Diameter 280 mm
  • Slide Travel
  • Top Left X2 Axis 220 mm
  • Top Left Z2 Axis 835 mm
  • Bottom Right X3 Axis 220 mm
  • Bottom Right Z3 Axis 850 mm
  • Tailstock Z1 Axis 795 mm
  • Distance Spindle Flange to Tailstock Reference Point 995 mm
  • Maximum Turning Length (Clamping Device-Dependent) 800 mm
  • Chuck Diameter (Max.) 250 mm
  • Spindle Bore 90 mm
  • Spindle Diameter in Front Bearing 130 mm
  • Machine Dimensions
  • Length (with Chip Conveyor) Approximately 6453 mm
  • Width (with Control Panel and Switch Cabinet) Approximately 3400 mm
  • Height Approximately 2346 mm
  • Weight 11 tons
