CNC Lathe

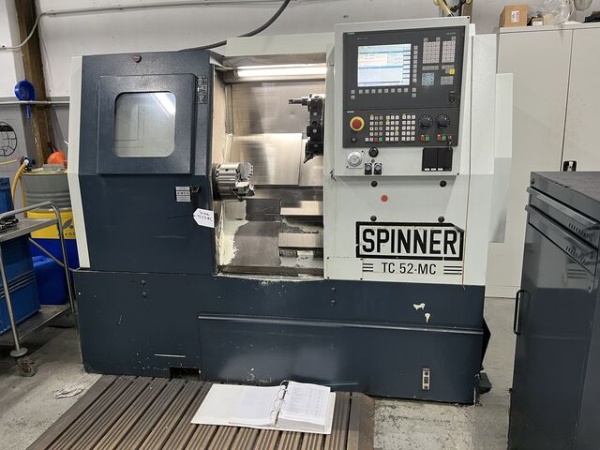

Buy Used CNC Lathe from Spinner of year - 2007, Model - TC 52 MC

SKU : 250471

I am a dealer

Subscribe for similar machines

CNC Turning Center
Swing Diameter 400 mm
Distance Between Centers Approx. 550 mm
Travel Distance X-Axis 200 mm
Travel Distance Z-Axis 570 mm
Rapid Traverse X-Axis 15 m/min
Rapid Traverse Z-Axis 24 m/min
Turning Spindle Nose A6
Spindle Bearing Diameter (Internal) 90 mm
Max. Spindle Speed 5,000 rpm
Bar Capacity (Collets) 52 mm
Max. Power Chuck Diameter 225 mm
Chuck Body Clearance 66 mm
Tool Carrier Indexing Turret with Driven Tool Stations
Number of Driven Stations 12
Rotating Tool Speed (Max.) 6,000 rpm
Tool Holder Type DIN 69880 / 30 mm (VDI 30)
Tool Magazine Slots 12
Total Height 1,880 mm
Total Length 2,150 mm
Total Width 1,600 mm
Overall Weight 2,500 kg
Note VDI 30 tool holders and any tools shown in images are not included in the sale/delivery scope.
