CNC Lathe

Buy Used CNC Lathe from Spinner of year - 2007, Model - TC65MC

SKU : 250472

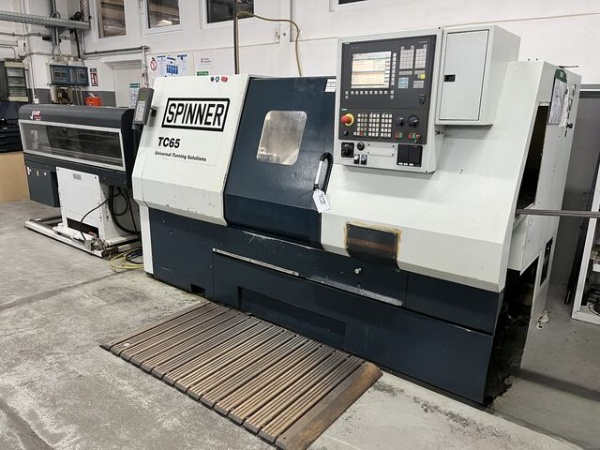

Used Spinner CNC Lathe 2007 TC65MC

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens 840D
  • Diameter 310 mm
  • Length 600 mm
  • Spindle Bore 65 mm

Machine Description

  • CNC Turning Center
  • Swing Over Bed 425 mm
  • Distance Between Centers Approx. 600 mm
  • Travel Distance X-Axis 230 mm
  • Travel Distance Z-Axis 740 mm
  • Rapid Traverse X-Axis 15 m/min
  • Rapid Traverse Z-Axis 24 m/min
  • Main Spindle Speed (Max.) 4,500 rpm
  • Spindle Head Diameter 100 mm
  • Spindle Bearing Diameter 120 mm
  • Max. Power Chuck Diameter 250 mm
  • Max. Permissible Chuck Jaw Weight 1.25 kg
  • Tool Carrier Indexing Turret with Driven Tool Stations
  • Number of Driven Stations 6
  • Rotating Tool Speed (Max.) 6,000 rpm
  • Tool Holder Type DIN 69880 / 30 mm (VDI 30)
  • Tool Magazine Capacity 6 Slots
  • Bar Loader LNS Quickload Servo V3
  • Year of Manufacture (Bar Loader) 2007
  • Total Height 1,800 mm
  • Total Length 5,000 mm
  • Total Width 1,500 mm
  • Overall Weight 4,700 kg
  • Included Technical documentation
  • Not Included VDI 30 tool holders and any turret-mounted tools shown in images
