CNC Lathe

Buy Used CNC Lathe from TK, Model - TC30A

SKU : 2505428

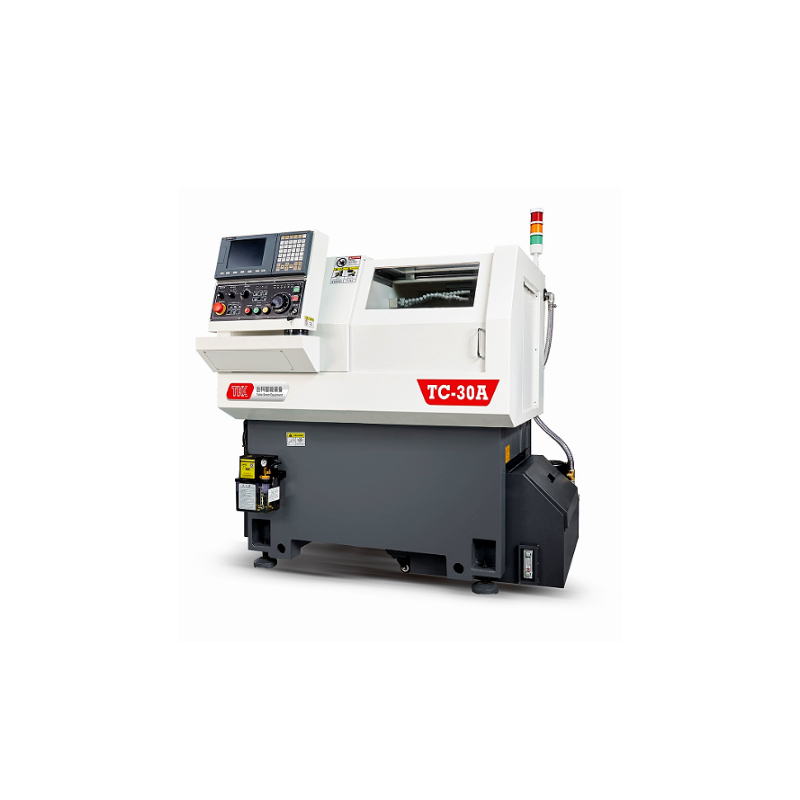

Used TK CNC Lathe TC30A

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Diameter 100 mm
  • Length 110 mm

Machine Description

  • High-Rigidity High-Precision Flat Bed CNC Fixed Headstock Lathe
  • Main Specifications
  • Max. Spring Collet Holding Diameter φ30 mm
  • Max. Swing Diameter Over Bed φ260 mm
  • Max. Swing Diameter Over Tool Post Base φ110 mm
  • Max. Machining Diameter φ100 mm
  • Max. Machining Length φ110 mm
  • Main Spindle Through-Hole Diameter φ32.5 mm
  • Main Spindle Speed 6000 rpm
  • Rapid Traverse Speed 30 m/min
  • Main Spindle Motor 3.7 / 5.5 kW
  • Servo Motor 0.75 kW
  • Coolant Motor 130 W
  • Positioning Accuracy (X/Y/Z) 0.005 mm
  • Repeat Positioning Accuracy (X/Y/Z) 0.002 mm
  • X Axis 520 mm
  • Z Axis 220 mm
  • Electric Power 6 KVA
  • Height from Floor to Spindle Center 995 mm
  • Machine Dimensions (L × W × H) 1475 × 1170 × 1420 mm
  • Machine Weight 1100 kgStandard Accessories
  • 01. Coolant Unit – 1 Set
  • 02. Lighting Unit – 1 Set
  • 03. Centralized Lubrication Unit – 1 Set
  • 04. Air Lube Unit – 1 Set
  • 05. Coolant Open/Close Device – 1 Set
  • 06. Unfinished Spring Collet – 1 Pcs
  • 07. Spring Collet Adapter – 1 Pcs
  • 08. Preset Base – 1 Pcs
  • 09. Tool Holder (S1/S2/S3/AH1) – 1 for Each
  • 10. Boring Cutter Holder – 1 Pcs
  • 11. Lathe Drawing Machine – 1 Pcs
  • 12. Drill Clamp (Includes ER16 × 2) – 1 Set
  • 13. Parts Receiver Device – 1 Set
  • 14. Circuit Breaker – 1 Set
  • 15. Machine Base – 4 Pcs
  • 16. Signal Lamp – 1 Pcs
  • 17. Tool Box – 1 Set
