This machine not available

CNC Lathe

Buy Used CNC Lathe from Traub of year - 2004, Model - TNA 700

SKU : 240581

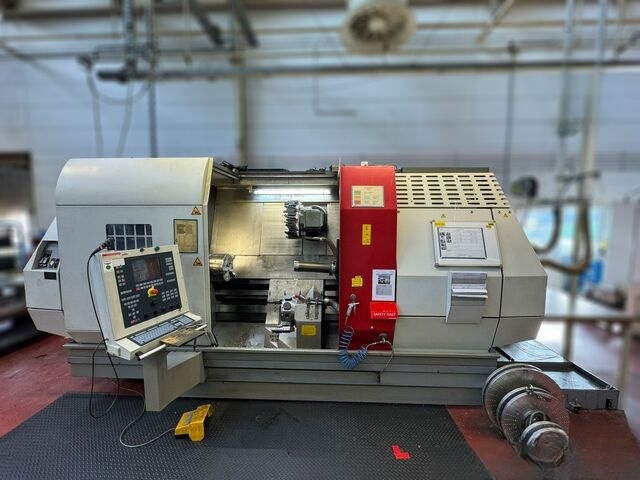

Used Traub CNC Lathe 2004 TNA 700

CONTACT SELLER

Machine overview

Machine Specifications

  • Diameter 700 mm
  • Length 1250 mm
  • Spindle Bore 102 mm

Machine Description

  • Turning diameter 700 mm
  • Turning length 1,250 mm
  • Total power requirement 115 kW
  • Main Spindle
  • Direct drive with adjustable hollow shaft motor
  • Max. material passage 102 mm
  • Max. speed 3,000 rpm
  • Power 53 kW (100% ED), 68 kW (40% ED)
  • Torque 675 Nm (100% ED), 900 Nm (40% ED)
  • C-axis resolution 0.001°
  • Clamping cylinder with adjustable pressure range (10-80 bar)
  • Tool Carrier 1
  • Number of driven stations 12
  • Working path X-axis 320 mm
  • Working path Z-axis 1,250 mm
  • Rapid traverse speed X/Z 15 / 30 m/min
  • Speed of driven tools 6,000 rpm
  • Torque 35 Nm
  • Tool Carrier 2
  • Number of stations 10
  • Working path X-axis 212 mm
  • Working path Z-axis 1,250 mm
  • Rapid traverse speed X/Z 20/ 40 m/min
  • Tailstock (NC-controlled)
  • Center distance 1,250 mm
  • Working path 1,340 mm
  • Rapid traverse 7.5 m/min
  • Clamping Device Main Spindle
  • Three-jaw chuck RÖHM Duro-NC 320-91
  • Jaw stroke 10.1 mm
  • Total clamping force 160 kN
  • Max. speed 3,200 l/min
  • Material passage 91 mm
  • Control Unit TX8i
  • Machine Dimensions (LxWxH) Approx. 5,345 x 2,360 x 2,491 mm
  • Machine Weight Approx. 15,000 kg
