Home
Metal Cutting
CNC Lathe
XYZ
320 LTY
This machine not available

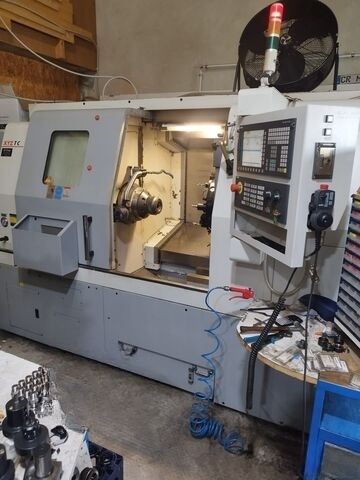

CNC Lathe
Buy Used CNC Lathe from XYZ of year - 2011, Model - 320 LTY
SKU : 2404801
CONTACT SELLER
Hello, Your machine XYZ - CNC Lathe listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
CNC Lathe
Category
Metal Cutting
Brand
XYZ
Year
2011
Condition
Used
Location
Germany
Machine
Specifications
Diameter
320 mm
Length
550 mm
Spindle Bore
91 mm
Machine
Description
Rotation diameter max. 450mm
Turning diameter max. 320mm
turning length 550mm
Travel distances
X 260mm
Z 600mm
Y-axis +-50mm
Spindle nose A2-8
Spindle speed 3300rpm
Spindle bore 91mm
Bar capacity 78mm
12 pocket tool turret VDI40 (all driven)
Tailstock MK5
Dimensions LxWxH
3920x2060x2050mm
Weight approx. 7000kg
Power chuck 250mm and 315mm
Collet head incl. collet set 185E
Tool package consisting of fixed and driven tools
Chip conveyor
Y axis
Tool measuring arm
The machine was in use until the end and is in good condition.
Price net free loading ex location
