CNC Turn-Mill

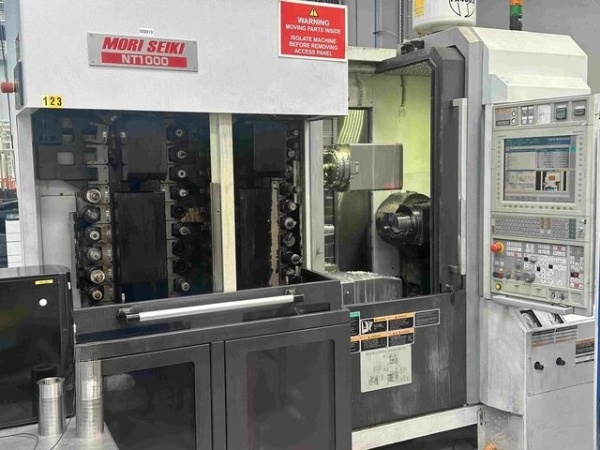

Buy Used CNC Turn-Mill from Mori Seiki of year - 2010, Model - NT1000SZM

SKU : 2503136

I am a dealer

Subscribe for similar machines

A high-performance CNC machining center with main spindle, sub-spindle, and lower turret, designed for precision turning and milling with 5-axis capability. Equipped with a high-speed tool spindle and automated features
Main Spindle Power 11 kW (7.5 kW secondary)
Main Spindle Speed (Max) 6,000 rpm
Tool Spindle Speed (Max) 20,000 rpm
Tool Spindle Drive Power 9 kW (5.5 kW secondary)
Bar Passage 65 mm
Spindle Nose Capto C5
Chuck Outer Diameter 200 mm
X-Axis Travel 380 mm
Y-Axis Travel 210 mm
Z-Axis Travel 480 mm
B-Axis Travel ±120°
C-Axis Rotation 360°
Tool Storage Capacity 76 tools
Max Tool Diameter 130 mm
Max Tool Weight 5 kg
Total Length 3,810 mm
Total Width 2,900 mm
Total Height 2,670 mm
Overall Weight 8,500 kg
Included Equipment & Features
Kitagawa 5" Chuck & 8" Hollow Chuck
Swarf Conveyor
70-Bar High-Pressure Coolant System
Air Blow for Chuck & Tool Tip
In-Machine Tool Presetter (Tool Spindle & Turret 2)
Workpiece Conveyor (for Bar Feeder Spec)
Bar Feed Interface
Tool & Workpiece Counter
Signal Tower
Double Foot Switch (for Both Spindles)
Part Program Storage (1MB) + 1,000 Registerable Programs
Knoll Compact Filter Unit
Double Wound Transformer
Key Features & Benefits
Simultaneous 5-axis turning & milling
High-speed 20,000 rpm tool spindle for complex machining
Strong spindle power & high torque for heavy-duty cutting
Large 76-tool ATC for flexible operations
Advanced automation features for increased efficiency
