CNC Turn-Mill

Buy Used CNC Turn-Mill from Tornomat

SKU : 2506141

I am a dealer

Subscribe for similar machines

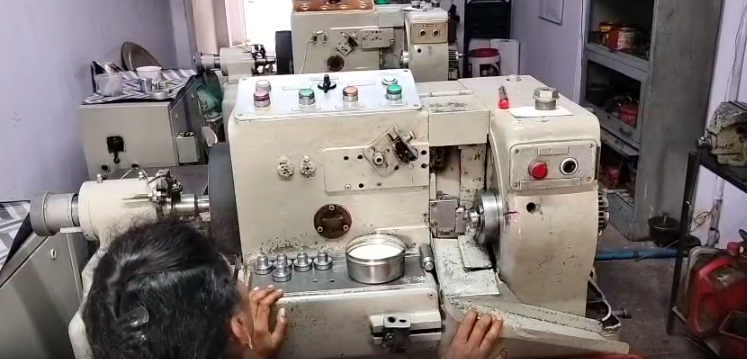

Used German Make TORNOMAT Polygon Milling / Turning Machine
System Hydraulic
Control SIEMENS 24V DC
Motors Three Phase SIEMENS
Motor Power 2.0 HP + 3.0 HP
Milling Capability Non-Ferrous, Mild Steel (M.S), Alloy Steel, Stainless Steel (S.S)
Milling Capacity
Hexagon 3–36 mm
Square 3–24 mm
Flat 3–36 mm
Max Milling Length 38 mm
Daily Output 1000–1500 pieces
Rotor Speed 255 / 355 / 450 RPM
Turret Index Time 1.0 second
Hydraulic System
Oil ENKLO 68 x 60 litres
Max Working Pressure 25 bar
Machine Weight 1500 kg
Floor Space Required 200 cm x 700 cm
Included Accessories
One Set of Collets
Tool Holder with Cutting Tool (for one component)
Machine Manual
Reason for Sale Owner is scaling down business
