Double Column VMC
Chevalier
FVM-4016DCL
Double Column VMC

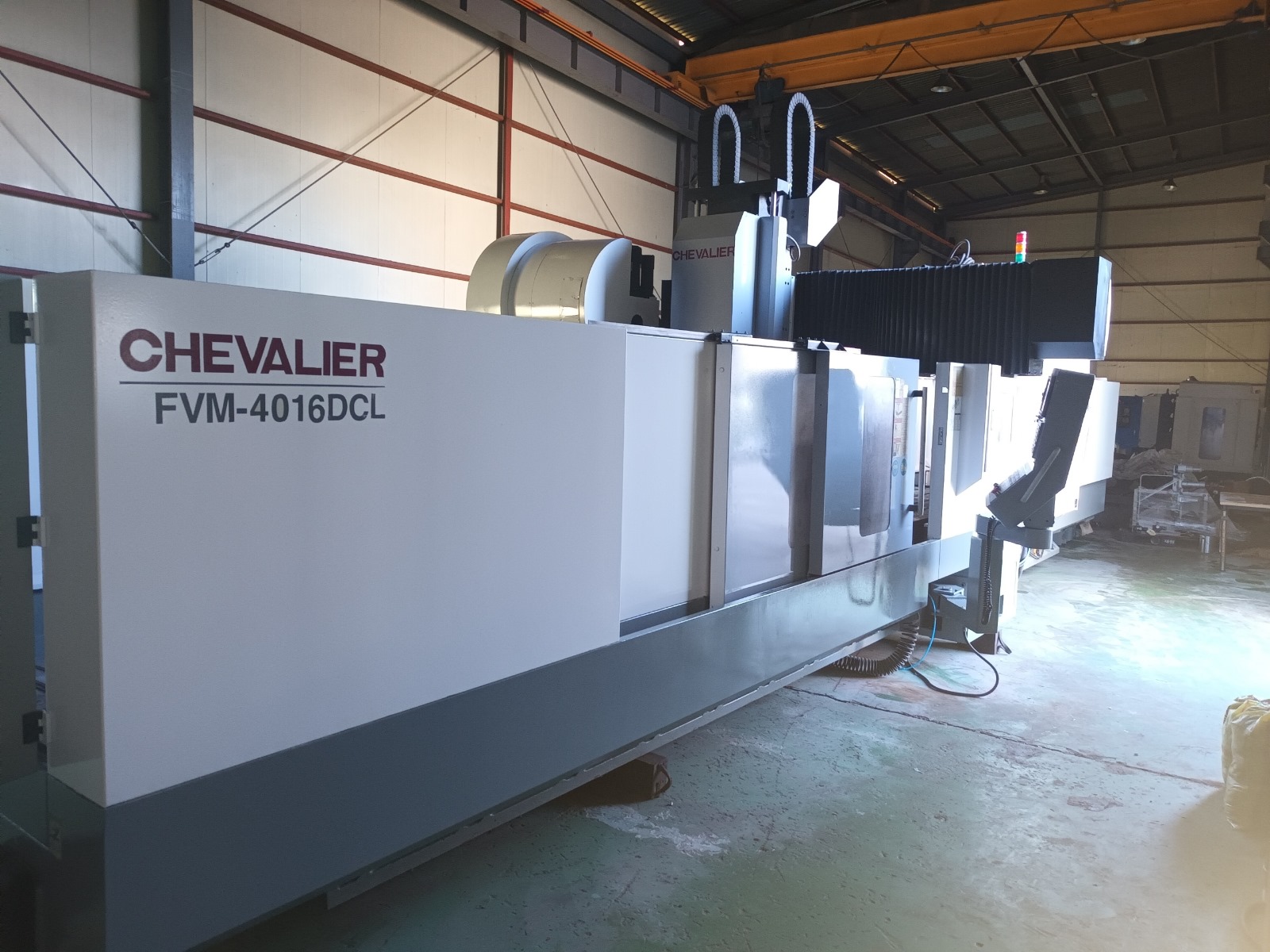

Buy Used Double Column VMC from Chevalier of year - 2012, Model - FVM-4016DCL
SKU : 2312318
Price :
$88,000
CONTACT SELLER
Hello, Your machine Chevalier - Double Column VMC listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Double Column VMC
Category
Metal Cutting
Brand
Chevalier
Year
2012
Condition
Used
Location
Korea South
Machine
Specifications
Controller
Fanuc 18i-MB
X travel
4100 mm
Y Travel
1600 mm
Z Travel
780 mm
Machine
Description
Double Column Machining Center
Table Size 4100 x 1450 mm
Table Load Capacity 8000 Kg
Table Height from Floor 850 mm
X-Axis (Longitudinal Travel) 4100 mm
Y-Axis (Cross Travel) 1600 mm
Z-Axis (Vertical Travel) 780 mm
Max/Min Clearance Table Top to Spindle Nose 878 / 200 mm
Distance Between Columns 1700 mm
Rapid Traverse Rate, All Axes 15 m/min
Cutting Feederate 1 ~ 7 m/min
Spindle Horsepower 30 HP (2-Speed Gearbox)
Max Spindle Speed 6,000 RPM
Spindle Taper BT50
ATC 20 tools
Chip conveyor
Approximate Machine Dimensions 11.9 x 4.6 meter
Approximate Machine Height 4.5 meter
Approximate Machine Weight 30 tons
