Double Column VMC

Buy Used Double Column VMC from HNK of year - 2006, Model - HQ-25M

SKU : 2505524

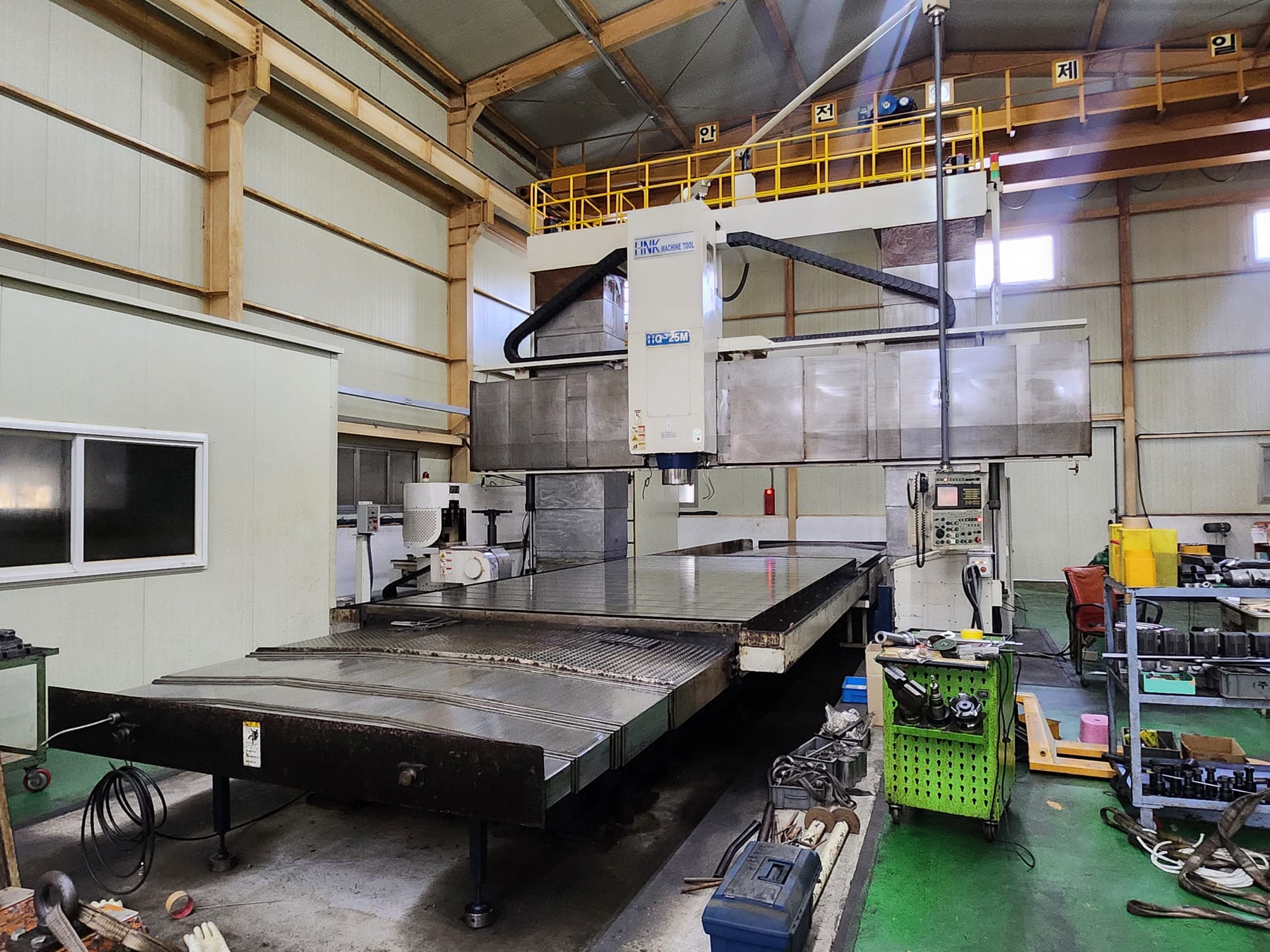

Used HNK Double Column VMC 2006 HQ-25M

Price : $250,000

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Fanuc 18i-MB
  • X travel 5250 mm
  • Y Travel 4000 mm
  • Z Travel 600 mm

Machine Description

  • 5 Side Double Column VMC
  • Distance from table top to end of spindle Max. 1,800 mm
  • X-axis stroke 5,250 mm
  • Y-axis stroke 4,000 mm
  • Z-axis stroke 600 mm
  • W-axis stroke 1,400 mm
  • Table size 2,500 mm × 5,300 mm
  • Working area 2,500 mm × 5,000 mm
  • Max. loading capacity 20,000 kg
  • T-slot 28 mm × 17 pcs
  • Type QUIL
  • Spindle taper ISO. 50
  • Spindle diameter Ø100 mm
  • Quill diameter Ø350 mm
  • Spindle speed 30 ~ 3,000 rpm
  • Spindle motor (30 min/cont.) A.C 22/26
  • Max. torque 915 N·m
  • Rapid traverse (X, Y-axis) 10,000 mm/min
  • Rapid traverse (Z-axis) 6,000 mm/min
  • Rapid traverse (W-axis) 3,000 mm/min
  • Cutting feed (X, Y-axis) 1 ~ 6,000 mm/min
  • Cutting feed (Z-axis) 4,500 mm/min
  • Cutting feed (W-axis) 3,000 mm/min
  • MPG (Manual Pulse Generator) 0.001 mm/min
  • X-axis (table longitudinal) A.C Servo 9 kW (53 N·m)
  • Y-axis (spindle head cross) A.C Servo 7 kW (30 N·m)
  • Z-axis (spindle vertical) A.C Servo 7 kW (30 N·m)
  • W-axis (crossrail up/down) A.C Servo 7 kW (30 N·m)
  • Installation area 8,000 × 15,000 mm
  • Machine height 6,800 mm
