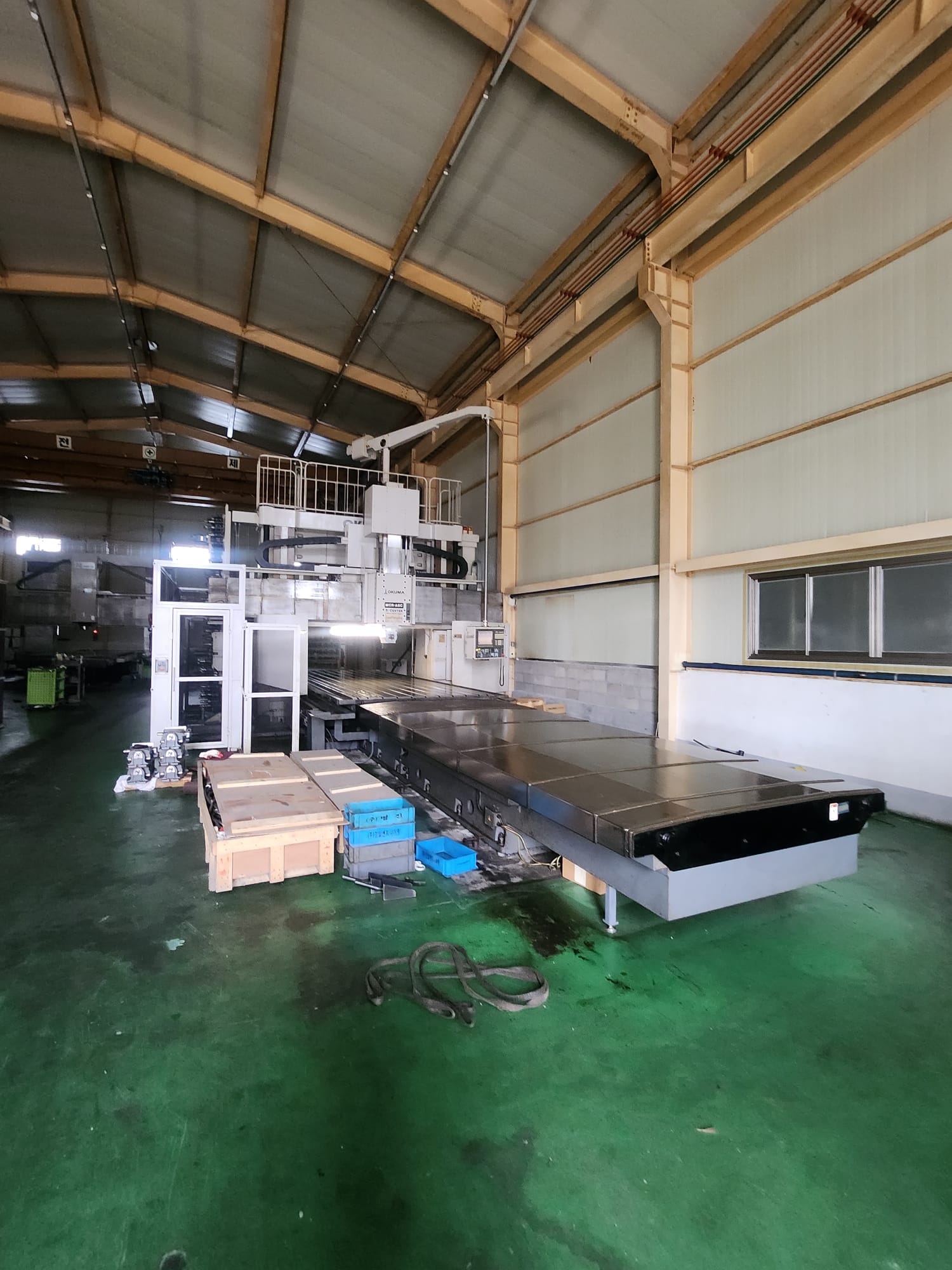

5 Side Double Column VMC
Effective Gate Width 25 × 65 mm
Distance from Table Top to Main Shaft End 0–1,650 mm
Table Distance (X-axis Travel) 6,700 mm
Table Size (Width × Length) 2,000 × 6,500 mm
Working Surface Size (Width × Length) 2,000 × 6,500 mm
T-Slot (Width × Number × Interval) 24H7 × 11 (center 200, ends 130 mm)
Height from Bottom of Table to Floor 800 mm
Cutting Feed Speed (X-axis) 1–10,000 mm/min (Avg. limit: 4,000 mm/min)
Fast Forward Speed (X-axis) 20,000 mm/min
Maximum Loading Mass 29,000 kg
Spindle Diameter Ø100 mm
Tapered Hole NT No.50
Spindle Gear Range Built-in Motor, Winding Switching, Two-Stage
Spindle Rotational Speed 30–4,000 rpm
Cross-Sectional Size Ø350 mm
Z-axis Travel 650 mm
Cutting Feed Speed (Z-axis) 1–10,000 mm/min (Avg. limit: 4,000 mm/min)
Fast Forward Speed (Z-axis) 10,000 mm/min
Y-axis Travel 3,000 mm
Cutting Feed Speed (Y-axis) 1–10,000 mm/min (Avg. limit: 4,000 mm/min)
Fast Forward Speed (Y-axis) 20,000 mm/min
W-axis Travel 1,000 mm (Auto Positioning Range: 900 mm)
W-axis Moving Speed 1,000 mm/min
Tool Holder Type B.T.50 + MAS2
Number of Tools Stored (ATC) 72
Tool Identification System Unique Address System
Main Motor Output VAC22/18.5 kW (30 min/continuous)
X-axis Feed Motor 4.6B.L Motor
Y-axis Feed Motor 5.2B.L Motor
Z-axis Feed Motor 3.6B.L Motor
Cross Rail Elevating Motor 4.2B.L Motor
Machine Height Approx. 5,500 mm
Required Floor Area Approx. 6,055 × 3,200 mm
Net Mass (Only This Machine) Approx. 50,000 kg
