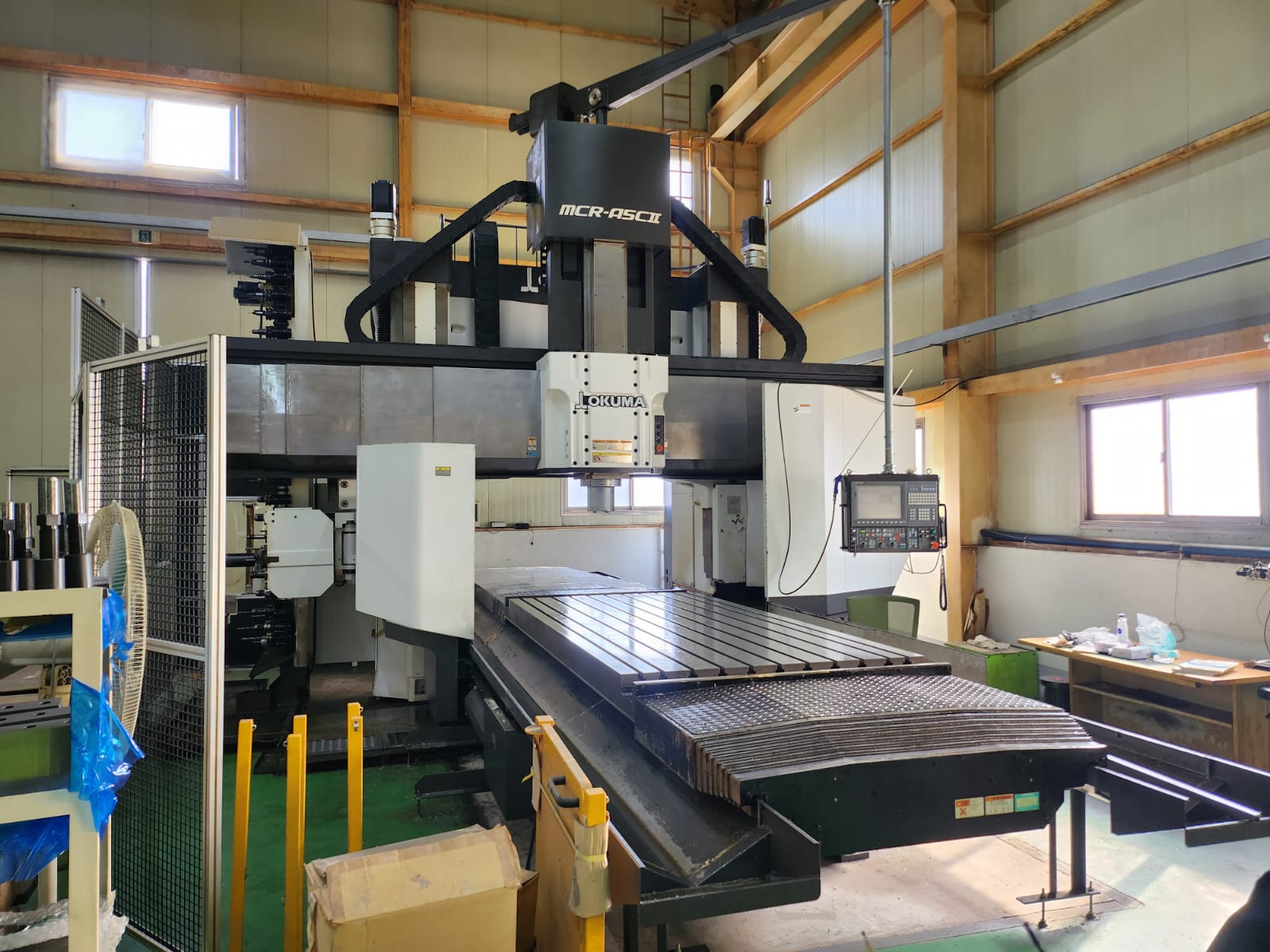

5 Side Double Column VMC
Effective Stroke 20 × 30
Distance from Table Top to Spindle End 2,150 mm
Table Movement Stroke (X-axis) 0–1,350 mm
Table Size (Width × Length) 1,500 × 3,400 mm
Work Area Size (Width × Length) 1,500 × 3,000 mm
T-Slots (Width × Pitch × Number) 24H × 11 (140 mm pitch center, 100 mm ends)
Table Height from Machine Base 850 mm
Cutting Feed Rate (X-axis) 1–10,000 mm/min (recommended max: 4,000 mm/min)
Rapid Feed Rate (X-axis) 30,000 mm/min
Max Table Load 12,000 kg
Taper Hole Diameter Ø100 mm
Taper Type N.T. No. 50
Spindle Speed Range 30–4,000 rpm (2-step belt drive)
Spindle Taper Type B.T. 50 + MAS type
Spindle Motor Power VAC 26/22 kW (30 min/continuous)
Table Axis Motor (X) 9.4 kW B.L. Motor
Head Axis Motor (Y) 7.3 kW B.L. Motor
Ram Axis Motor (Z) 5.2 kW B.L. Motor ×2
Cross Rail Lift Motor (W) 4.6 kW B.L. Motor ×2
Ram Stroke (Z-axis) 800 mm
Cutting Feed (Z-axis) 1–10,000 mm/min (recommended max: 4,000 mm/min)
Rapid Feed (Z-axis) 20,000 mm/min
Head Travel (Y-axis) 2,600 mm
Cutting Feed (Y-axis) 1–10,000 mm/min (recommended max: 4,000 mm/min)
Rapid Feed (Y-axis) 32,000 mm/min
Cross Rail Travel (W-axis) 800 mm
Cross Rail Feed Rate 3,000 mm/min
Tool Holder Type B.T. 50 + MAS type
Tool Magazine Capacity 50 tools
Tool Identification Fixed code system
Machine Height Approx. 5,860 mm
Floor Space (L × W) Approx. 6,180 × 8,430 mm
Machine Weight Approx. 32,000 kg
