This machine not available

Gear Shaper

Buy Used Gear Shaper from Gleason of year - 2008, Model - P 1200 S

SKU : 2404394

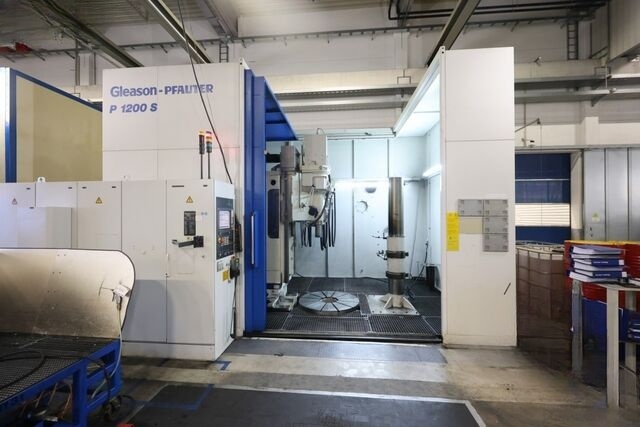

Used Gleason Gear Shaper 2008 P 1200 S

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • Width 350 mm
  • Wheel Diameter 1200 mm

Machine Description

  • Max. Wheel Diameter 1200 mm
  • Gear Width 350 mm
  • Max. Module 16
  • Control System Sinumerik 840 D
  • Max. Swing Diameter 1400 mm
  • Max. Table Load 15000 kg
  • Table Bore Diameter 300 mm
  • Table Diameter 1200 mm
  • Total Power Requirement 150 kW
  • Weight of the Machine Approx. 24 tonnes
  • Dimensions of the Machine Not specified
  • Workpiece with External Gearing
  • Largest Modulus (in Steel with approx. 600N/mm²) 16 mm
  • Maximum Gear Width 350 mm
  • Largest Outside Diameter 1200 mm
  • Workpiece with Internal Gearing
  • Largest Modulus (in Steel with approx. 600N/mm²) 16 mm
  • Maximum Gear Width 350 mm
  • Maximum Swing Diameter 1400 mm
  • Maximum Inner Diameter 1200 mm
  • Maximum Impeller Diameter 260 mm
  • Stroke Length 50 mm – 380 mm
  • Special Version with Hydraulic Cutting Head H1
  • Workpiece Diameter
  • External Gears 1200 mm
  • Internal Gears 1200 mm
  • Largest Workpiece Swing Diameter
  • Without Steady Rest 1400 mm
  • Oil Mist Exhauster "3nine" Type KLARA
  • Cutting Wheel Holder 3 Pieces
  • Measuring Device for Machine P 1200 S
