max. wheel diameter 1200 mm
gear width 350 mm
max. module 16
min. module 0,5
max. workpiece diameter 1400 mm
table diameter 1200 mm
table hole 300 mm
control Siemens 840D Powerline
total power requirement 75 kW
weight of the machine ca. 24 t
dimensions of the machine ca. 5x3x3,8 m

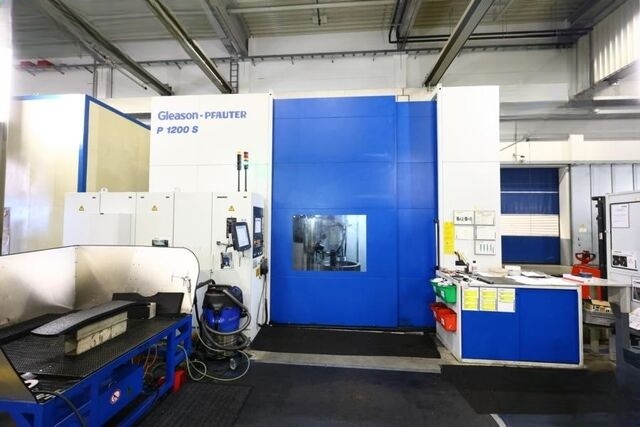

Gleason-PFAUTER CNC gear shaping machine P 1200 S for the production of
internally and externally cylindrical gears with internal and external teeth
and other rolling profiles and moulds profiles and moulds that regularly occur
on the cylindrical workpiece circumference and for the production of profiles
in the single part process.
Special version with hydraulic shaping head H1
SCOPE OF EQUIPMENT
Basic machine P1200S, Siemens 840D Powerline (XP)
Hydraulic shaping head H1
Signal light (3-colour)
Extended software for fault diagnosis
Telephone diagnosis system
Chip disposal through table bore
Set of adjusting wedges
Monitoring devices
Warm-up programme
Network connection (Ethernet)
19" flat control panel OP 015A
Offline version "dialogue programming
Vapour separator make "3nine" type KLARA
Machine installation under floor
Rinsing gun
Mounting device
Cutting wheel holder ( 3 pieces )
Cutting wheel holder for sheep cutting wheels
Cutting wheel holder for sheep cutting wheels
Special cutting wheel holder
Preparation for retrofitting paper belt filter system
Measuring device for machine P 1200 S
Clamping base body
BDE/MDE interface in the machine control cabinet
Modification of vapour separator make "3nine" type Klara type EMMA
Working range and technical data
Nominal workpiece diameter
External toothing. . . . . . . . 1.200 mm
Internal gearing. . . . . . . . 1.200 mm
Largest workpiece circulation Ø without counter stand... 1.400 mm
Nominal machine module approx.
with hydraulic impact head H1... 16 mm
Shaping spindle stroke rate range
with hydraulic shapin
