Gear Shaper
Liebherr
LS 120
This machine not available
Gear Shaper

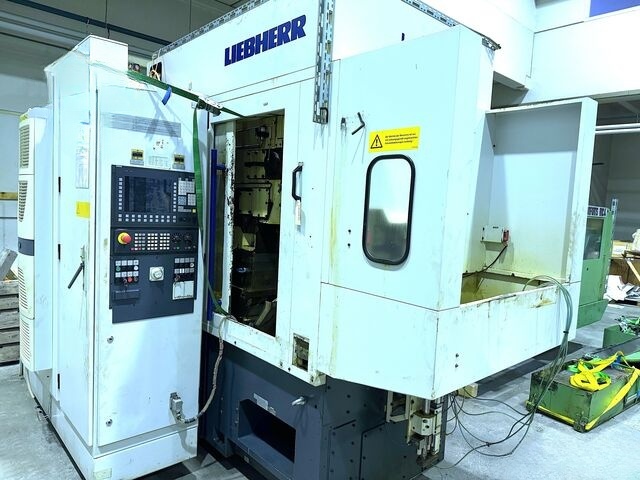

Buy Used Gear Shaper from Liebherr of year - 2004, Model - LS 120
SKU : 2404391
CONTACT SELLER
Hello, Your machine Liebherr - Gear Shaper listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Gear Shaper
Category
Metal Cutting
Brand
Liebherr
Year
2004
Condition
Used
Location
Germany
Machine
Specifications
Controller
Siemens
Wheel Diameter
120 mm
Machine
Description
Siemens Sinumerik control system
Technical data
Table diameter 145 mm
Table bore 80 mm
Max. Table speed 150 rpm
Max. Workpiece outer diameter 120 mm
Shaping head
MAx. Standard module 5 mm
Max. Bevel angle 45 degrees
Min. stroke rate 250 DH/min
Max. Stroke rate 1500 DH/min
Min. impact spindle speed 0.0076 rpm
Max. Shock spindle speed 30 rpm
Drive power lifting drive 17 kW
Stroke position Adjustment range 70 mm
Max. Stroke length 55 mm
Operating voltage 400 V
Operating frequency 50 Hz
Control voltage 24 V DC
Total weight 8to
