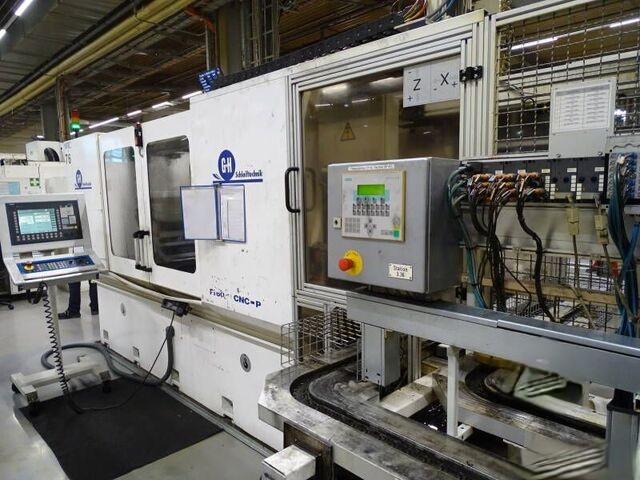

Buy Used Grinder - Cylindrical from Geibel and Hotz of year - 2004, Model - NAFI 600

SKU : 2309883

I am a dealer

Subscribe for similar machines

Machine Details
Manufacturer Geibel & Hotz GmbH
Model FI 600
Year of Construction 2004
Serial Number 3025680204
Inventory Number 20-1100205-0
Machine Number 76
Machine Weight 6,700 kg
Control System Siemens Sinumerik 840 D
Includes Hydraulic Unit, Cooling Unit, Belt Filter Press, and Automatic Loading and Unloading System
Technical Specifications
Center Distance 600 mm
Center Height 180 mm
Max. X-Axis Speed 10 m/min
Min. X-Axis Speed 0.01 m/min
Finishing Head Infeed Stroke Max. 35 mm
Abrasive Belt 3M 15 (2x)
Sanding Belt Feed 2-5 mm
Sanding Belt Drive Power 1.5 kW
Speed, Workpiece Spindle 0-1000 m/min
Taper Bore Workhead MK 5
Taper Bore Tailstock Center MK 4
Total Connection Power 14 kW
Operating Voltage 400 volts, 3 phases
Mains Frequency 50 Hz
Total Weight of the Machine 6,700 kg
Operating Noise Level 70 dB(A)
