This machine not available

Grinder - Cylindrical

Buy Used Grinder - Cylindrical from Geibel and Hotz of year - 2002, Model - RS 600 CC

SKU : 2401841

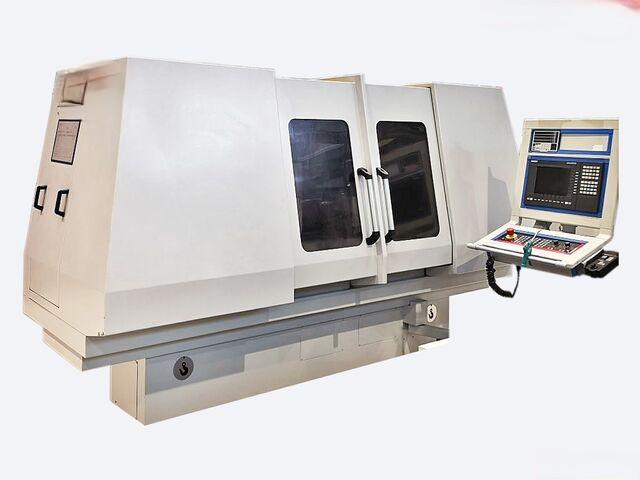

Used Geibel and Hotz Grinder - Cylindrical 2002 RS 600 CC

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • Swing 355 mm
  • Centre Height 180 mm
  • Between Centre 600 mm

Machine Description

  • -Control System
  • CC-control Siemens 840 D
  • Condition
  • Well-maintained, in good condition
  • Technical Data
  • Center Width 600 mm
  • Center Height 180 mm
  • Max. Grinding Diameter 355 mm
  • Max. Z-axis Speed 15 m/min
  • Min. Z-axis Speed 0.01 m/min
  • Axis Resolution Z-axis 0.5 µm
  • Max. X-axis Speed 10 m/min
  • Min. X-axis Speed 0.01 m/min
  • X-axis Axis Resolution 0.5 µm
  • Grinding Wheel Left Side (Ø x Width x Ø Hole) 500 x 80 x 203 mm
  • Grinding Wheel Peripheral Speed 45 m/s
  • Power External Grinding Spindle Drive 10 kW
  • Workpiece Spindle Speed 0 - 1000 m/min
  • Taper Bore Workpiece Headstock MK5
  • Taper Bore Tailstock-Grain Point MK4
  • Cylindricity Adjustment +10° / - 4°
  • Power and Voltage
  • Total Connected Power 28 kW
  • Operating Voltage 3x 400 V / 50 Hz
  • Machine Details
  • Total Weight 5800 kg
  • Operating Sound Level 70 dB(A) according to EN 31201
