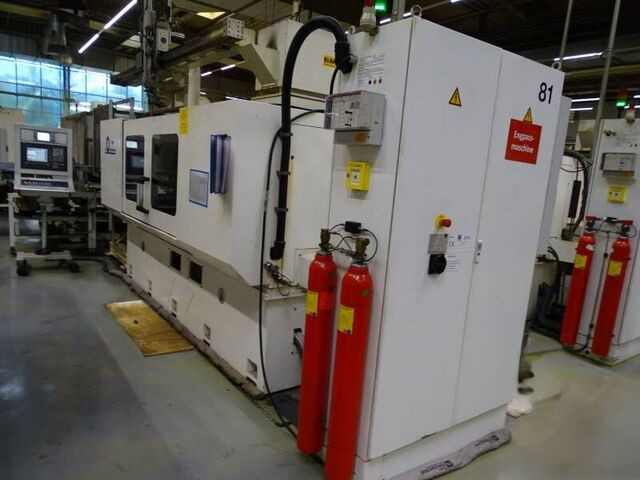

Buy Used Grinder - Cylindrical from Geibel and Hotz of year - 2005, Model - RS 600 CNC

SKU : 2309882

I am a dealer

Subscribe for similar machines

Machine Details
Manufacturer Geibel & Hotz GmbH
Model RS 600
Year of Construction 2005
Serial Number 302935
Inventory Number 20-1100285-0
Machine Number 81
Includes Abrasive Preparation, Hydraulic Unit, Siemens Sinumerik Control, and Pick & Place Gantry Handling System for Loading and Unloading
Technical Specifications
Center Distance 600 mm
Center Height 180 mm
Maximum Grinding Diameter 355 mm
Maximum Workpiece Weight 150 kg
Maximum Z-Axis Speed 11 m/min
Minimum Z-Axis Speed 0.01 m/min
Maximum X-Axis Speed 7.5 m/min
Minimum X-Axis Speed 0.01 m/min
External Cylindrical Grinding Spindle
Standard Grinding Wheel (Øa x b x Øi) 600 x 80 x 304.8 mm
Grinding Wheel Peripheral Speed 5 - 50 m/s
Power Consumption (Grinding Spindle Motor) 11 kW
Workpiece Spindle
Taper Bore Workhead MK 5
Power Consumption 2.7 kW
Tailstock
Taper Bore Center Point MT 4
Fluid Capacities
Coolant Tank 2000 liters
Lubricating Oil 30 liters
Hydraulic Oil 60 liters
Electrical Specifications
Operating Voltage 400 volts, 3 phases
Mains Frequency 50 Hz
Total Weight of the Machine Approximately 5800 kg
Operating Noise Level 70 dB(A)
