Horizontal Bed Milling

Buy Used Horizontal Bed Milling from Parpas, Model - ML120

SKU : 2503433

I am a dealer

Subscribe for similar machines

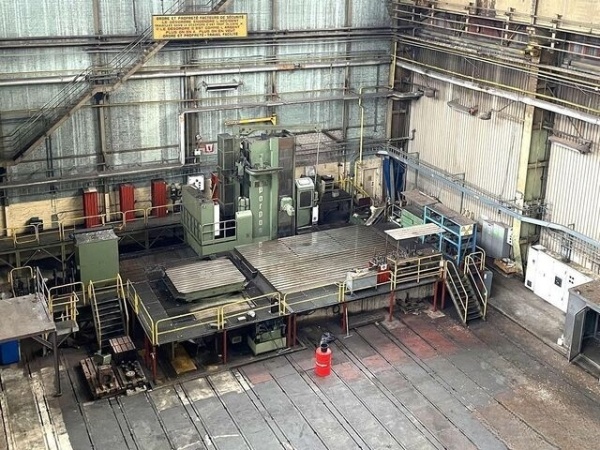

Bed Milling Machine with Moving Column
Heavy-duty CNC milling and boring machine (floor-type borer/miller)
Axes
6-Axis Simultaneous X / Y / Z / W / B / V + 2-axis indexing milling head (2.5°)
8-Axis Simultaneous X / Y / Z / W / B / V + continuous orthogonal milling head (A: ±120° / C: ±180°)
CNC Milling Heads
Continuous orthogonal milling head (A ±120° / C: ±180°)
Indexing milling head (2.5°)
Ram Size 630 x 500 mm
Ram Travel 1,250 mm
Spindle Diameter 130 mm
Spindle Travel 650 mm (boring function without milling head)
Tool Changer
Automatic changing of two milling heads
60-tool positions
Cooling System Through-spindle cooling
Chip Management Chip conveyor
Longitudinal Travel (X-Axis) 12,000 mm
Cross Travel (Y-Axis – Ram Travel) 1,250 mm
Vertical Travel (Z-Axis – Height) 3,500 mm
Maximum Quill Travel (Z') 1,250 + 650 mm
Spindle Power 37 kW
Spindle Taper ISO 50
Speed Range 6 – 2,000 RPM
Machine Dimensions (L x W x H) 19 m x 12 m x 6.65 m
Machine Weight 60 tons
TIRT3025 CNC Turntable (Continuous Rotation)
Maximum Workpiece Weight 60 tons
Table Dimensions 3,000 x 2,500 mm
Turntable Travel 2,500 mm
Maximum Rotation Speed 2 RPM
Turntable Weight 37 tons
Turntable Dimensions 6,500 x 2,500 x 1,500 mm
Table Dimensions 7,600 x 5,282 mm
Table Weight 50 tons
