Home
Metal Cutting
Horizontal Machining Center ( HMC )
Ex-cell-o
XS425

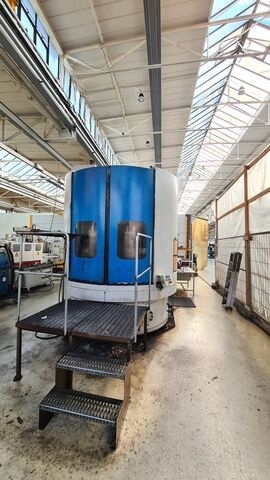

Horizontal Machining Center ( HMC )
Buy Used Horizontal Machining Center ( HMC ) from Ex-cell-o of year - 2004, Model - XS425
SKU : 24092120
Price :
€40,000
CONTACT SELLER
Hello, Your machine Ex-cell-o - Horizontal Machining Center ( HMC ) listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Horizontal Machining Center ( HMC )
Category
Metal Cutting
Brand
Ex-cell-o
Year
2004
Condition
Used
Location
Germany
Machine
Specifications
Controller
Siemens
Pallet Size
800 mm
X Travel
1200 mm
Y Travel
850 mm
Machine
Description
X-axis travel distance
1,200 mm
Y-axis travel distance
850 mm
Z-axis travel distance
850 mm
Rapid traverse (X, Y, Z)
30,000 mm/min
Feed length (X-axis)
1,125 mm
Feed length (Y-axis)
800 mm
Feed length (Z-axis)
800 mm
Spindle and Torque
Maximum torque
500 Nm
Rotational speed (max.)
3,700 RPM
Spindle operating hours
10,055 hours
Number of spindles
1
Table
Table size
800 mm x 800 mm
Tool Magazine
Number of tool positions
80 slots
Power and Control
Siemens 840D Powerline
Power
110 kW (149.56 HP)
Input voltage
400 V
Type of input current
Three-phase
Dimensions and Weight
Total machine length
8,260 mm
Total machine width
4,080 mm
Overall weight
27,000 kgConnected load: 110 kW
Control system
Siemens 840D Powerline
Machining Capabilities
Machining spindle torque
500 Nm
Tool holder type
HSK A100
Tool magazine capacity
Approximately 80 positions
Pallet changer
Dual pallet system with pallet size of 800 mm x 800 mm
Equipment and Features
Coolant system
Knoll emulsion coolant system
Chip management
Chip conveyor included
