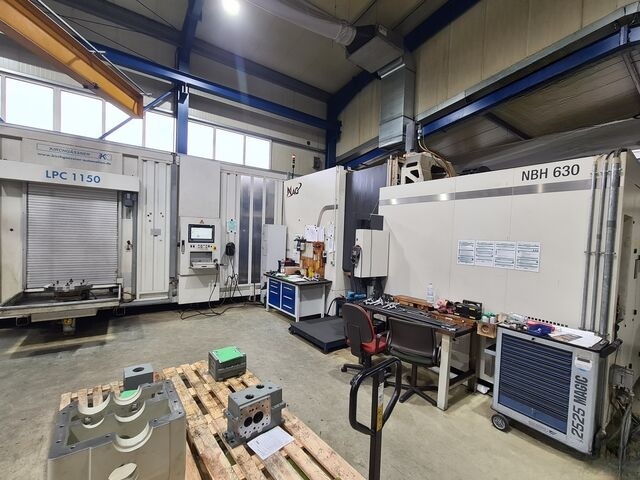

Buy Used Horizontal Machining Center ( HMC ) from Huller Hille of year - 2010, Model - NBH630

SKU : 2406647

I am a dealer

Subscribe for similar machines

Equipment Highlights
High-precision package
Cooled main spindle
Tempered coolant in a 2500L container
High-torque gear spindle (2-stage) up to 10,000 rpm
Technical Details
Pallet Size 630x630 mm / T-Slot
Tool Interface HSK100
Control System Siemens 840D
Axes 4 Main Axes - X/Y/Z/B
Spindle Type 2-speed gear spindle
Spindle Specs 10,000 rpm, 37 kW, 908 Nm at 100% duty cycle, Torque support, Spindle cooling jacket
Tool Magazine 150-place cassette type magazine
Stroke (X/Y/Z) 1025 / 1000 / 1000 mm
Accuracy Package
Increased straightness and angularity of the linear axes
Increased accuracy for pallet 630x630 mm
Operating Components
1x Flat control panel OP 12 with TFT color display
1x Hand-held operating device
Coolant / Conveyor
2500L coolant system with thermal stabilization
Chip conveyor
Additional Options
Feed and torque monitoring
Drill breakage control (probe) located in the tool magazine
Renishaw measuring system with OMP 60 probe including software
Tool Identification System (Balluff)
Reven Mist extraction system
Services Offered by GSN
Conversion to standalone solution (manual loading)
Adapting the machine to your needs
Annual maintenance service
Engineering and manufacturing of new clamping fixtures
Designing and programming of the new NC program
Transportation
Installation and commissioning of the machine according to manufacturer specifications
