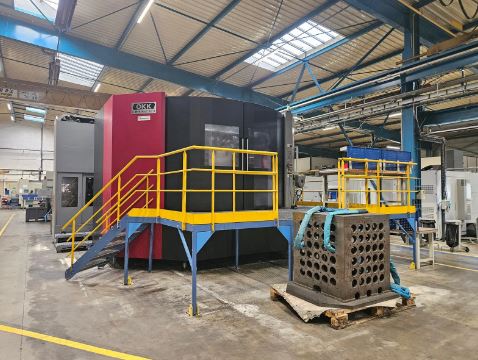

Buy Used Horizontal Machining Center ( HMC ) from Okk of year - 2014, Model - HM1600

SKU : 2504117

I am a dealer

Subscribe for similar machines

High-Performance CNC Machining Center
Spindle
Power 40 / 30 / 25 kW
Speed 12,000 rpm
Torque 420 Nm
Taper BT50
Surface 1,600 × 1,250 mm
Max Load 5,000 kg
Max Workpiece Size Ø2,500 × H1,850 mm
Z Travel 1750 mm
Rapid Traverse (X / Y / Z) 42 m/min
Cutting Feed 20 m/min
Tool Changer
Capacity 120 tools
Max Tool Diameter 115 mm (300 mm with adjacent slot empty)
Max Tool Length 600 mm
Max Tool Weight 30 kg
Tool Change Time 3.8 sec
Precision
Positioning Accuracy (X / Y / Z) ±0.0035 mm
Repeatability ±0.0020 mm
4th Axis Positioning Accuracy ±2.5 sec
4th Axis Repeatability ±1.0 sec
Reservoir Capacities
Coolant 800 L
Hydraulic Oil 20 L
Spindle Lubrication 75 L
Power & Air Supply
Electrical 97 kVA
Air Pressure 4–6 bar
Air Flow 500 L/min
Other Features
Big Plus Spindle, Soft Scale II (temperature compensation), Soft AC (adaptive control), tool breakage detection, hydraulic lubrication, oil cooler, auto stop & weekly scheduler, 220V/380V transformer.
Max Workpiece Weight 5,000 kg
Machine Weight 50,000 kg
