Horizontal Machining Center ( HMC )

Buy Used Horizontal Machining Center ( HMC ) from Toyoda of year - 1996, Model - FH-80B

SKU : 2505521

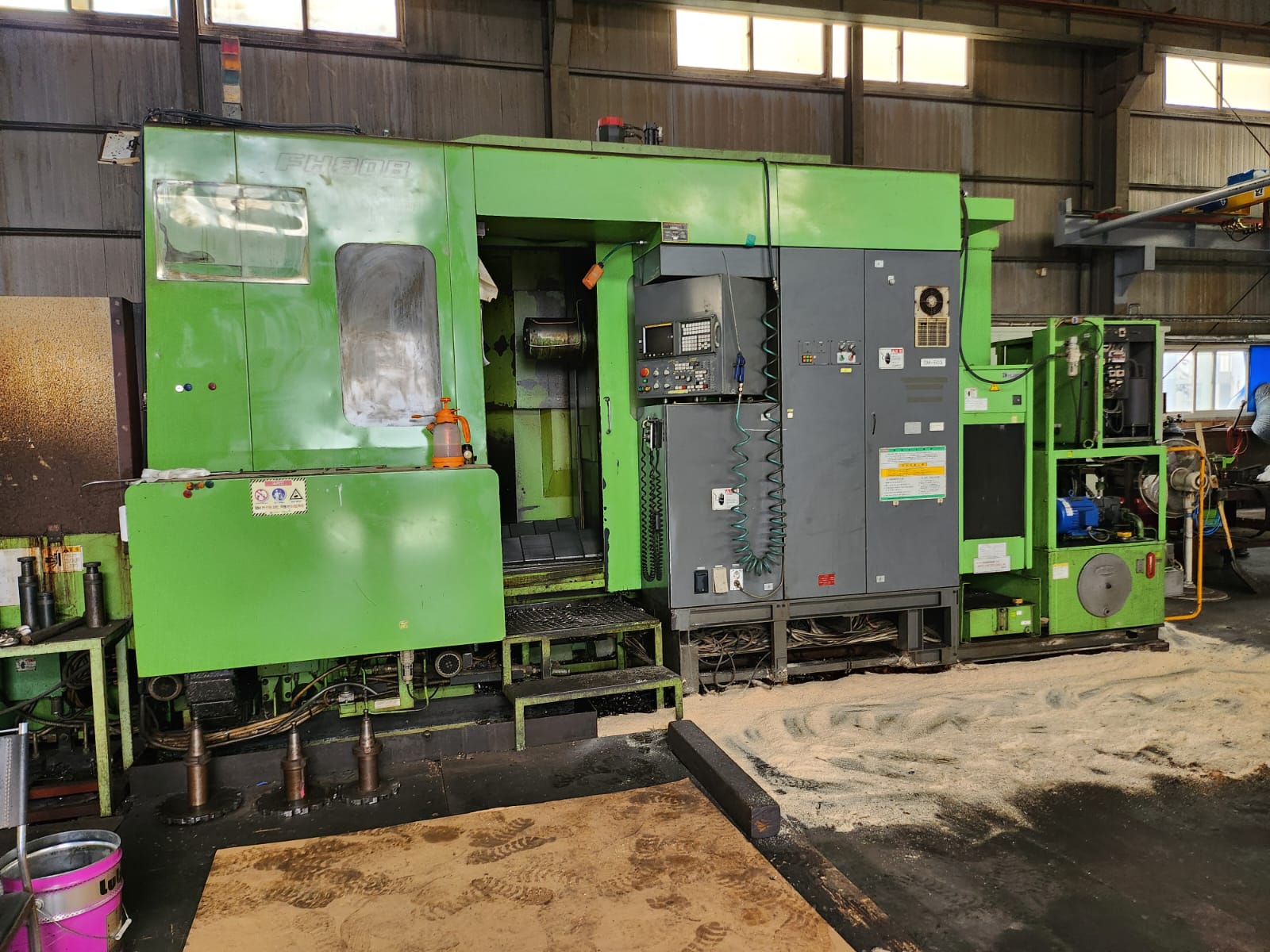

Used Toyoda Horizontal Machining Center ( HMC ) 1996 FH-80B

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Fanuc 15-M
  • Pallet Size 800 mm
  • X Travel 1200 mm
  • Y Travel 1000 mm

Machine Description

  • Rotary Table Indexing Angle 1°
  • Pallet Height (from floor) 1300 mm
  • X-Axis Travel (Table Left/Right) 1200 mm
  • Y-Axis Travel (Spindle Up/Down) 1000 mm
  • Z-Axis Travel (Column Forward) 900 mm
  • Spindle Nose to Pallet Top Distance 0 – 1000 mm
  • Spindle Center to Table Center Distance 200 – 1100 mm
  • Rapid Feed (X, Y, Z Axis) 15,000 mm/min
  • B Axis Rotation Speed 7.2 min⁻¹
  • Cutting Feed Speed (X, Y, Z Axis) 1 – 5,400 mm/min
  • Spindle Speed Range 15 – 4,500 min⁻¹
  • Spindle Motor Power AC 22/18.5 kW (30 min/continuous)
  • Spindle Taper ISO R297 / Taper No. 50
  • Tool Holder MAS BT50
  • Pull Stud MAS I Type P50T
  • Tool Magazine Capacity 96 tools (random fixed pot type)
  • Tool Change Time (chip-to-chip) 12 sec (includes 200 mm stroke)
  • Positioning Accuracy ±0.002 mm (full stroke)
  • Rotary Table Indexing Accuracy ±3 arcsec
  • Repeatability ±0.001 mm
  • Max Pallet Load 1600 kg
  • Thrust Force Max 19,600 N (2000 kgf)
