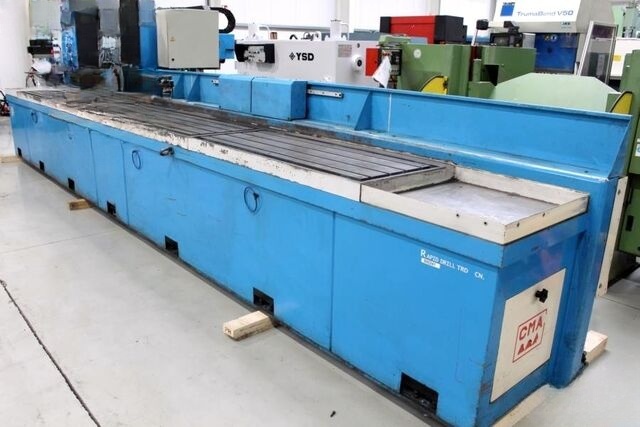

Buy Used Jig Boring from CMA of year - 2007, Model - RAPID DRILL TRD-32 CN 6000

SKU : 240550

I am a dealer

Subscribe for similar machines

X-Travel 6000 mm
Y-Travel 650 mm
Z-Travel 400 mm
Spindle Diameter MAS-403-BT40
Bore Capacity in Steel (Diameter) 32.0 mm
Thread Cutting Attachment 20 M
Turning Speeds 50 - 3,000 U/min
Table Size 6000 x 600 mm
Table Height 920 mm
Control OMRON CNC
Distance Spindle/Table 260 - 660 mm
Table Load 1000 kg/m
Total Power Requirement 8.9 kW
Weight of the Machine Approximately 5250 kg
Dimensions of the Machine Approximately 7500 x 2200 x 2200 mm
Features
Welded monoblock steel frame with high rigidity
Modular table made of cast iron with four T18 grooves
8.4" color touchscreen CNC control
Linear guides along all axes
Servo motor-driven movement (programmable)
Servo motor-driven spindle rotation (programmable)
Spindle BT40 with automatic clamping
External coolant system pump and tank
Automatic tool calibrator
CNC OMRON color touch screen control
Memory up to 999 programs
Programming of coordinates via 3 different menus Single hole (random pattern), Hole grid (single or multi-line), Flange
50 programmable zero points
CNC control of all axes (X,Y,Z)
Axis (Z) Different speeds & workflows programmable, Plate drilling cycle, Drilling cycle for profiles, Thermal drilling cycle, Small milling cycle (linear and interpolated X/Y)
Programming ISO standard
