Lathe - Sliding Head

Buy Used Lathe - Sliding Head from Citizen of year - 2014, Model - M32 4 M5

SKU : 250416
Used Citizen Lathe - Sliding Head 2014 M32 4 M5

Price : RFQ

CONTACT SELLER

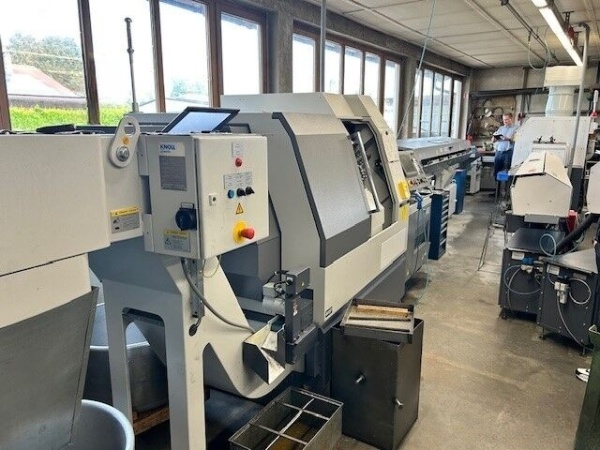

Machine overview

Machine Specifications

  • Controller Mitsubishi 730 LPC-4
  • Diameter 32 mm
  • Length 320 mm

Machine Description

  • Precision Swiss Lathe
  • Number of Spindles Main and Counter Spindle
  • Max. Tapping Diameter M10 (Stainless Steel)
  • Main Spindle Speed 8000 rpm (Continuously Variable)
  • C-Axis of Spindle 0.001°
  • Max. Clamping Diameter of Counter Spindle 32 mm
  • Counter Spindle Speed 200-8000 rpm (Continuously Variable)
  • Number of Clamped Tools 25 (3 Tool Systems)
  • Tool Turret 1 Unit
  • Main Spindle Drive Power 3.7 kW / 7.5 kW
  • Counter Spindle Drive Power 2.2 kW / 3.7 kW
  • Driven Tool Power 1.0 kW
  • Machine Footprint 3395 x 1410 x 1900 mm
  • Weight 3650 kg
  • Additional Equipment
  • FMB Turbo 3-36 Loading Magazine
  • Year of Manufacture 2017
  • Capacity For Bars up to 36 mm in Diameter
  • Knoll 360 S-1 Chip Conveyor
  • Year of Manufacture 2017
  • Kraft & Bauer Automatic Fire Extinguishing System
  • Year of Manufacture 2017
  • Function Early Fire Detection and Extinguishing with Extinguishing Agent
  • Special Features
  • High-precision machining with Citizen sliding headstock automatic lathes
  • Optimized for series production with high process reliability
  • Enhanced bar machining efficiency with the FMB loading magazine
  • Integrated chip disposal for clean and efficient production
  • Fire protection system for increased operational safety
