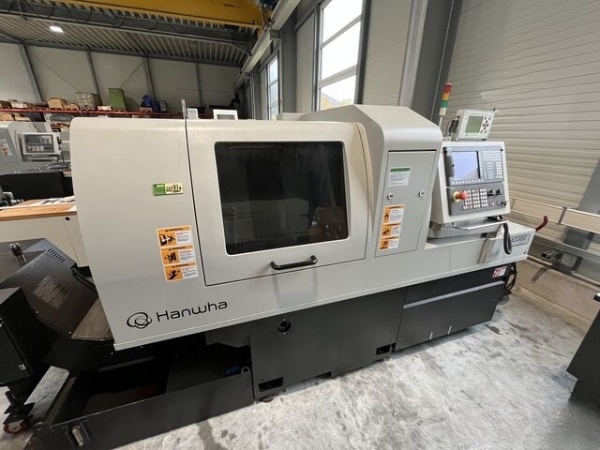

Maximum turning diameter 25 mm
Maximum speed 6,500 rpm
Maximum power 23 kW (76 Nm)
C-axis resolution 0.001°
Stroke Z1 142 mm (long lathe version), 80 mm (short lathe version)
Guide bush unit Synchronous
Guide bush type SL38
Collet chuck type 173E
Maximum speed 6,500 rpm
Maximum power 23 kW (76 Nm)
Maximum pick-up diameter 25 mm
Max. part length ejection (front) 90 mm
C-axis resolution 0.001°
Stroke Z2 280 mm
Collet chuck type 171E / 173E
Tool slide X1/Y1 Tool holder plate for 5 external turning tools (16 x 16 mm)
Cross drilling/milling device
5 driven ER16 drilling/milling spindles
Power 2.1 kW (S6000)
Front drilling unit with 5 drilling quills (32 mm diameter)
Tool carrier 4 tools (optionally 6)
Driven spindles 2–4 ER16 modular
Stationary spindles 2–4 ER16 modular
Driven spindles 4–5 ER16 modular
Stationary spindles 3–4 ER16 modular
Number of servo axes 6
Number of spindle axes 2
Rapid traverse speed
32 m/min (Z1, Z2, Y, X2, Y2)
24 m/min (X1)
Connected load 35 kW
Controlled axes 6 (X1, Z1, Y1, X2, Z2, Y2)
Simultaneous 4-axis control
External control panel with handwheel
Display 10.4" color LCD/MDI monitor
Features
Automatic PowerOff
Program test run via handwheel
Continuous thread cutting cycle
Runtime display & parts counter
CF card interface
Tool radius compensation
Absolute reference point
Self-diagnosis function
Special Feature
Hydraulic 3-jaw chuck on both main and pick-up spindles.
ACCESSORIES
Alignment shoes with leveling elements
Tool box and service tool set
LED work area light
3-color signal lamp
Safety door switch with interlock
Maintenance & central lubrication unit (1.8 L capacity)
Coolant flow monitoring
Pneumatic blow-out for pick-up spindle gripper
Manual and documentation German & English
