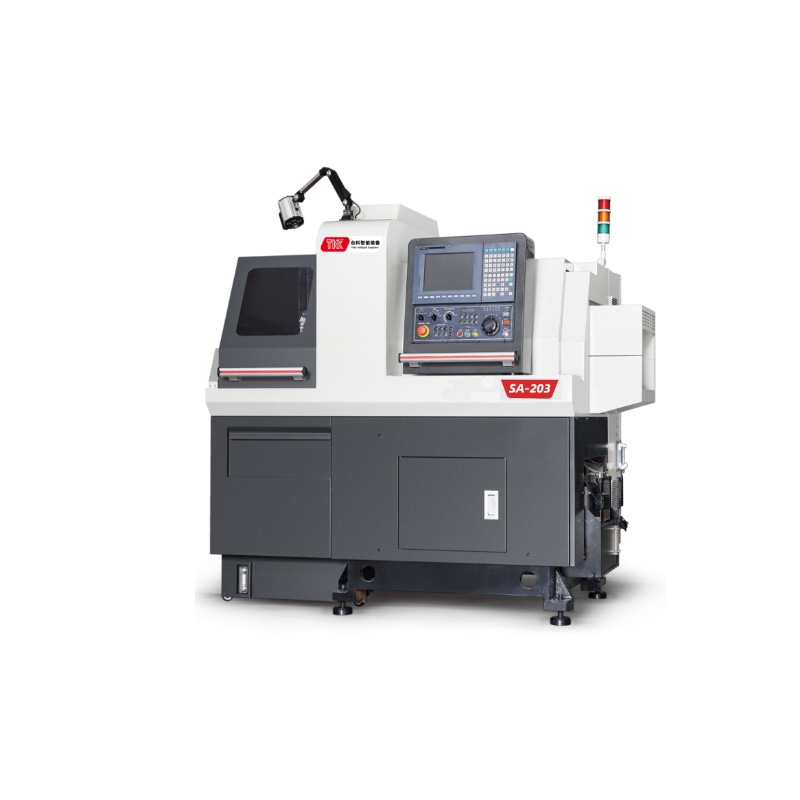

High Precision Swiss-Type Automatic CNC Lathe
Max. Machining Diameter φ20mm
Max. Headstock Stroke (G.B.) 255mm
Max. Headstock Stroke (N.G.B.) 2.5D
Main Spindle Speed 10,000rpm (7,000rpm with Guide Bushing)
Main Spindle Indexing Angle C Axis Control (0.001°)
Main Spindle Motor Power 2.2/3.7kW
Main Spindle Through-hole Diameter φ27mm
Rapid Traverse Rate
Z1 Axis 32m/min
X1 Axis 32m/min
Y1 Axis 32m/min
Dimensions (L×W×H) 1900×1300×1780mm
Weight 2000kg
Turning Tools 6 tools (□12mm)
Face Tool Holder (Front-end Working) 5 tools
Cross Tool Unit 5 tools (5-ER16)
Max. Drilling (Fixed Tool Axis) φ10mm
Max. Tapping (Fixed Tool Axis) M8×P1.25
Max. Drilling (ER16) φ8mm
Max. Tapping (ER16) M6×P1.0
Max. Milling φ10mm
Max. Slotting Notch Width 1.5mm, Depth 4mm
Cross Tool Speed (ER16) 6,000rpm
CNC Controller SYNTEC 200TB (Optional: FANUC)
Display 10.4-inch Color LCD
Drive Motor 1.0kW
Coolant Capacity 170L
Coolant Motor 0.4kW
Machine Features
01. CNC Functions SYNTEC 200TB
02. 10.4-inch Color LCD Display
03. Chucking Sleeve (Main/Sub)
04. Synchronous Rotary Guide Bushing
05. O.D. Tool Holder ×6
06. C Axis Control (Main)
07. Chucking Device (Main)
08. Transverse Rotating Tools (5-pc type 3 ER16 + 2 ER11)
09. I.D. Tool Holder
10. Lubrication Device with Level Sensor
11. Separate Iron Chip Storage Tank
12. Separate Cutting Oil Tank
13. RCD
14. Product Ejector
15. Desandman
16. Guide Bushing Air Seal
17. Main Spindle Air Seal
18. Signal Lamp
19. LED Work Light
20. Oil Cooler
Key Characteristics
Cost-effective single-axis machine tool
Supports complex and composite turning/milling processes
Fully automated processing for labor savings
Modular tool layout with multi-axis combined operations
Stable, high-speed, high-efficiency machining
Easy to operate
