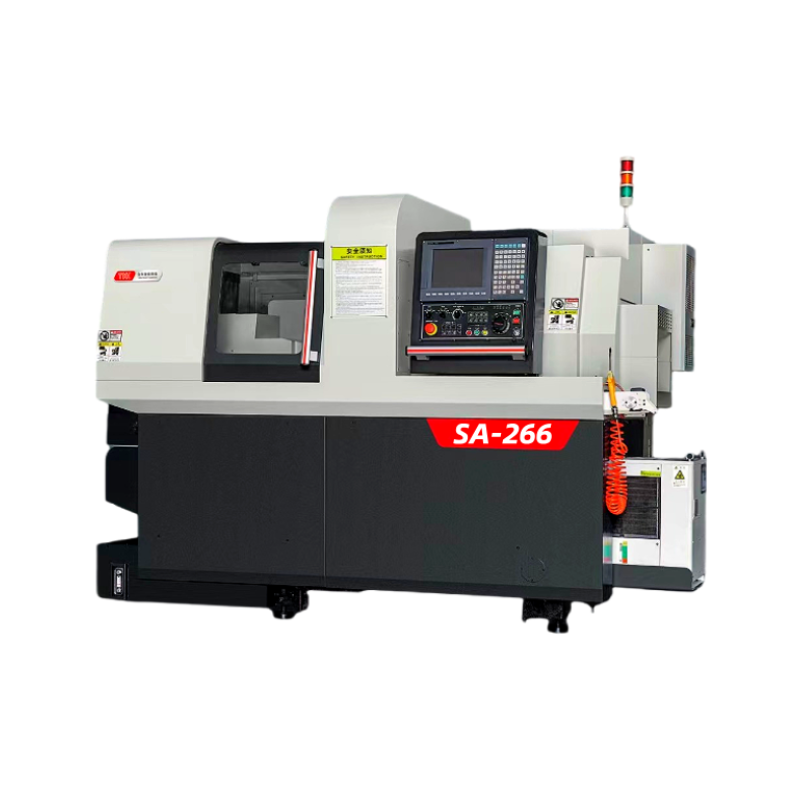

Six-Axis Linkage Swiss-Type Automatic CNC Lathe
Main Specifications
Max. Machining Diameter φ26 mm
Max. Headstock Stroke G.B. – 255 mm / N.G.B. – 2.5D
Turning Tools 6 Tools (□12 mm)
Face Tool Holder Front-End – 5 Tools / Rear-End – 2 Tools (Max. 5)
Max. Drilling (Fixed Tool Axis) φ10 mm
Max. Tapping (Fixed Tool Axis) M8 × P1.25
Cross Tool Unit
Number 5 Tools
Model 5 × ER16
Max. Drilling φ8 mm (ER16)
Max. Tapping M6 × P1.0
Max. Milling φ10 mm
Max. Slotting Notch Width 1.5 mm, Depth 4 mm
Speed 6000 rpm (ER16)
Drive Motor 1.0 kW
Rapid Traverse Rate
Z1 Axis 32 m/min
X1 Axis 32 m/min
Y1 Axis 32 m/min
Main Spindle
Speed 10,000 rpm
Indexing Angle C-Axis Control (0.001°)
Motor 2.2 / 3.7 kW
Through-Hole Diameter φ22 mm
Machine Construction
Coolant Capacity 170 L
Coolant Motor 0.4 kW
Dimensions (L × W × H) 2310 × 1300 × 1720 mm
Weight 2600 kg
Sub Spindle Attachment
Max. Machining Diameter φ26 mm
Max. Front Pick Length 80 mm
Max. Emerged Length 50 mm
Back Processing Tool Holders ER16 – 8 Tools (Includes Optional)
Max. Drilling (Fixed Tool Axis) φ8 mm
Power-Driven Drilling φ6 mm
Max. Tapping (Fixed Tool Axis) M8 × P1.25
Power-Driven Tapping M6 × P1.0
Sub Spindle Speed 8000 rpm
Indexing Angle C-Axis Control (0.001°)
Motor 1.5 / 2.2 kW
Rapid Traverse Rate (Sub Spindle) Z1 – 32 m/min / X1 – 24 m/min / Y1 – 24 m/min
Standard Accessories
01. CNC Functions – SYNTEC 200TB
02. 10.4-Inch Color LCD Display
03. Chucking Sleeve (Main/Sub)
04. Synchronous Rotary Guide Bushing
05. O.D. Tool ×6
06. C-Axis Control (Main/Sub)
07. Chucking Device (Main/Sub)
08. Transverse Rotating Tools ×5
09. I.D. Tool Holder
10. Y2 Axis Unit
11. Lubrication Device (with Level Sensor)
12. Door Switch
13. Separate Iron Chip Storage Tank
14. Separate Cutting Oil Tank
15. Residual Current Device (RCD)
16. Product Ejector
17. Desandman
18. Guide Bushing Air Seal
19. Main Spindle Air Seal
20. Sub Spindle Air Seal
