This machine not available

Lathe

Buy Used Lathe from SCHUTTE of year - 2003, Model - GWM tech S25

SKU : 2402288

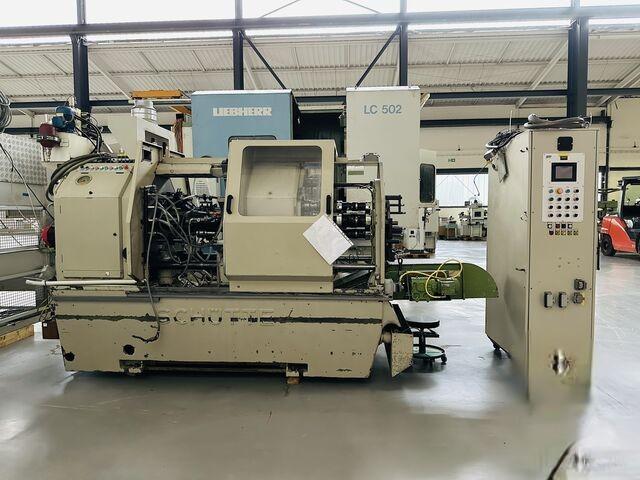

Used SCHUTTE Lathe 2003 GWM tech S25

CONTACT SELLER

Machine overview

Machine Specifications

  • Diameter 25 mm
  • Length 3765 mm

Machine Description

  • With Pietro Cucchi 2003 compact loader
  • Bar passage
  • Round 26 mm
  • Square 18 mm
  • Hexagonal 22 mm
  • Octagonal 23 mm
  • Stroke Longitudinal Slides
  • Standard 160 mm
  • Total working travel/ working stroke 100AR80 mm standard
  • total working travel/ working stroke 126AR100 mm special
  • CNC pick-up slide (optional)
  • working stroke 180mm
  • power 6 mm
  • CNC threading direction
  • power 22 mm
  • Lifting side slide
  • spindle position 4 and 5 42-22 mm
  • spindle position 3 and 6 54-25 mm
  • spindle position 1 and 2 60-26 mm
  • Main motor
  • power 15 Kw
  • spindle speed 300-3500 rpm
  • Feed motor
  • minimum piece time 1- sec.
  • Drum switching time 0,8-1,2 sec.
  • Power 22 nm/m
  • Dimensions and weights
  • length 3765 mm
  • width 1410 mm
  • height 2100 mm
  • Weight 4400 Kg
