Home
Metal Cutting
Milling Machine
Elumatec
SBZ 122-33
Milling Machine

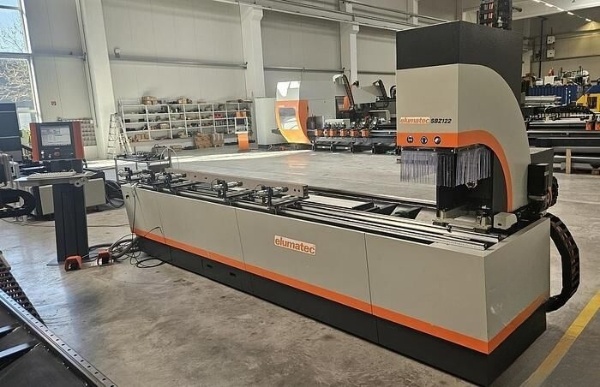

Buy Used Milling Machine from Elumatec of year - 2012, Model - SBZ 122-33
SKU : 2505509
Price :
€46,000
CONTACT SELLER
Hello, Your machine Elumatec - Milling Machine listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Milling Machine
Category
Metal Cutting
Brand
Elumatec
Year
2012
Condition
Used
Location
Germany
Machine
Specifications
Machine
Description
Type
3-Axis Machining Center with Automatic Tool Change
Application
Aluminum / PVC profiles
Max. X-Axis Travel
3,850 mm
Max. Y-Axis Travel
350 mm
Max. Z-Axis Travel
280 mm
Control System
Windows 7 with USB ports
Spindle Speed
Continuously adjustable up to 24,000 rpm
Spindle Pull-in Force
16 kN
Spindle Condition
Mint, ~1300 spindle hours
Handheld Control Unit
Included
Spraying System
Minimum quantity lubrication
Tool Changer
2 magazines, total 10 positions + angle head
Profile Length Measuring System
On the head
Clamp System
Tensioner detection and displacement
Material Clamps
5 total
Light Barrier
Included
Safety Fence
Dismantled (demo still possible)
Additional Equipment
Stop with roller conveyor for long parts
Machine Weight
Approx. 2,000 kg
